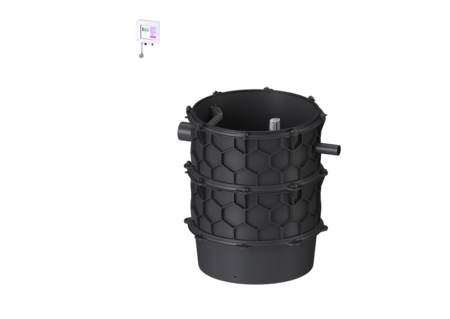

Pumping station Aquapump XL

Mono, GTF1400-S1, 400V

8743047
PDF product data sheet

KESSEL Pumping station Aquapump XL, Mono, wastewater for wastewater with or without sewage (in installation situations without ATEX requirements), floor slab installation, pump control by, with a submersible GTF 1400 pump, operating mode S1

  • Maximum safety
  • Flexible installation
  • Also handles large quantities of wastewater
Item no. 8743047
Price group 60

Pumping station Aquapump XL Mono, GTF1400-S1, 400V
The pumping station is equipped with one or two submersible pumps and a backflow preventer. The collection tank made of permanently resistant polymer (PE) has an open pump tank with universal connection options. Quick-release closures enable the integrated components to be removed easily. The KESSEL modular system provides different engineering chamber options as accessories for the further layout. Stainless steel pump removal chains available as accessory for each installation depth - Article number: 680528 = Length 2 m 680529 = Length 3 m 680530 = Length 4 m 680531 = Length 5 m Variant Type of system: Single unit Passage seal for conduit pipe (DN): 63 Passage seal for ventilation pipe (DN): 50 Installation: Wet installation Backflow preventer: integrated Pressure pipe connection: horizontal General characteristics Colour: black Standard: EN 12050-2 as well as EN 12050-1 (without ATEX requirements) Type of wastewater: for wastewater with or without sewage (in installation situations without ATEX requirements) Installation situation: floor slab installation Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected) System type: Mono ATEX: no Dimensions Net weight: 150 kg Gross weight: 170 kg Groundwater resistant from lower edge of base section: 3000 mm Length: 1300 mm Width: 1300 mm Height: 1416 mm Tank/drain body Pressure pipe connection (DN): 80 Pressure pipe connection (OD): 90 mm Inlet nominal size (OD): 160 mm Inlet nominal size (DN): 150 mm Number of inlets: 1 Pumping volume: 350 l Pumping device Pump: GTF 1400 Number of pumps: 1 Weight, pump: 22 kg Connection type: Direct connection Rated current: 6,5 A Protection class: I Insulation class: H Protection class (pump): IP 68 (20m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 31 m³/h Max. pumping height: 10,5 m Speed: 2900 U/min Power P1: 1,5 kW Power P2: 1,1 kW Operating mode: S1 Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Length of mains cable for pump: 10 m Control Control unit: Comfort Motor protection switch: yes Alarm sensor: Level sensor Level measurement instrument: Level sensor Type of level measurement: hydrostatic Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 400 V Connection type: Direct connection Length of mains cable for control unit: 1,4 m Potential-free contact: optional GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Rated current: 6,5 A Type of fuse required (electrical protection): C 16 A
  Title Item no.
8740000 Chamber module LW 1000 floor slab Access LW 600, 380-629 mm, Class A/B 8740000 Vezi
8740001 Chamber module LW 1000 floor slab Access LW 600, 380-629 mm, Class D 8740001 Vezi
8740002 Chamber module LW 1000 floor slab Access LW 800, 411-660 mm, Class K 3 8740002 Vezi
8740003 Chamber module LW 1000 floor slab Access LW 800, 668-917 mm, Class K 3 8740003 Vezi
8740004 Chamber module LW 1000 floor slab Access LW 800, 396-645 mm, Class A 15 8740004 Vezi
8740005 Chamber module LW 1000 floor slab Access LW 800, 653-902 mm, Class L 15 8740005 Vezi
8740006 Chamber module LW 1000 floor slab Access LW 600, 630-879 mm, Class A/B 8740006 Vezi
8740007 Chamber module LW 1000 floor slab Access LW 600, 630-879 mm, Class D 8740007 Vezi
8740008 Chamber module LW 1000 floor slab Access LW 800, 661-910 mm, Class K 3 8740008 Vezi
8740009 Chamber module LW 1000 floor slab Access LW 800, 918-1167 mm, Class K 3 8740009 Vezi
8740010 Chamber module LW 1000 floor slab Access LW 800, 646-895 mm, Class A 15 8740010 Vezi
8740011 Chamber module LW 1000 floor slab Access LW 800, 903-1152 mm, Class L 15 8740011 Vezi
8740012 Chamber module LW 1000 floor slab Access LW 600, 880-1129 mm, Class A/B 8740012 Vezi
8740013 Chamber module LW 1000 floor slab Access LW 600, 880-1129 mm, Class D 8740013 Vezi
8740014 Chamber module LW 1000 floor slab Access LW 800, 911-1160 mm, Class K 3 8740014 Vezi
8740015 Chamber module LW 1000 floor slab Access LW 800, 1168-1417 mm, Class K 3 8740015 Vezi
8740016 Chamber module LW 1000 floor slab Access LW 800, 896-1145 mm, Class A 15 8740016 Vezi
8740017 Chamber module LW 1000 floor slab Access LW 800, 1153-1402 mm, Class L 15 8740017 Vezi
8740018 Chamber module LW 1000 floor slab Access LW 600, 1130-1379 mm, Class A/B 8740018 Vezi
8740019 Chamber module LW 1000 floor slab Access LW 600, 1130-1379 mm, Class D 8740019 Vezi
8740020 Chamber module LW 1000 floor slab Access LW 800, 1161-1410 mm, Class K 3 8740020 Vezi
8740021 Chamber module LW 1000 floor slab Access LW 800, 1418-1667 mm, Class K 3 8740021 Vezi
8740022 Chamber module LW 1000 floor slab Access LW 800, 1146-1395 mm, Class A 15 8740022 Vezi
8740023 Chamber module LW 1000 floor slab Access LW 800, 1403-1652 mm, Class L 15 8740023 Vezi
8740024 Chamber module LW 1000 floor slab Access LW 600, 1380-1629 mm, Class A/B 8740024 Vezi
8740025 Chamber module LW 1000 floor slab Access LW 600, 1380-1629 mm, Class D 8740025 Vezi
8740026 Chamber module LW 1000 floor slab Access LW 800, 1411-1660 mm, Class K 3 8740026 Vezi
8740027 Chamber module LW 1000 floor slab Access LW 800, 1668-1917 mm, Class K 3 8740027 Vezi
8740028 Chamber module LW 1000 floor slab Access LW 800, 1396-1645 mm, Class A 15 8740028 Vezi
8740029 Chamber module LW 1000 floor slab Access LW 800, 1653-1902 mm, Class L 15 8740029 Vezi
8740030 Chamber module LW 1000 floor slab Access LW 600, 1630-1879 mm, Class A/B 8740030 Vezi
8740031 Chamber module LW 1000 floor slab Access LW 600, 1630-1879 mm, Class D 8740031 Vezi
8740032 Chamber module LW 1000 floor slab Access LW 800, 1661-1910 mm, Class K 3 8740032 Vezi
8740034 Chamber module LW 1000 floor slab Access LW 800, 1646-1895 mm, Class A 15 8740034 Vezi
8740036 Chamber module LW 1000 floor slab Access LW 600, 1880-2129 mm, Class A/B 8740036 Vezi
8740037 Chamber module LW 1000 floor slab Access LW 600, 1880-2129 mm, Class D 8740037 Vezi
8740038 Chamber module LW 1000 floor slab Access LW 800, 1911-2160 mm, Class K 3 8740038 Vezi
8740040 Chamber module LW 1000 floor slab Access LW 800, 1896-2145 mm, Class A 15 8740040 Vezi
8740042 Chamber module LW 1000 floor slab Access LW 600, 2130-2379 mm, Class A/B 8740042 Vezi
8740043 Chamber module LW 1000 floor slab Access LW 600, 2130-2379 mm, Class D 8740043 Vezi
8740044 Chamber module LW 1000 floor slab Access LW 800, 2161-2410 mm, Class K 3 8740044 Vezi
8740046 Chamber module LW 1000 floor slab Access LW 800, 2146-2395 mm, Class A 15 8740046 Vezi
8740048 Chamber module LW 1000 floor slab Access LW 600, 2380-2629 mm, Class A/B 8740048 Vezi
8740049 Chamber module LW 1000 floor slab Access LW 600, 2380-2629 mm, Class D 8740049 Vezi
8740050 Chamber module LW 1000 floor slab Access LW 800, 2411-2660 mm, Class K 3 8740050 Vezi
8740052 Chamber module LW 1000 floor slab Access LW 800, 2396-2645 mm, Class A 15 8740052 Vezi
8740054 Chamber module LW 1000 floor slab Access LW 600, 2630-2879 mm, Class A/B 8740054 Vezi
8740055 Chamber module LW 1000 floor slab Access LW 600, 2630-2879 mm, Class D 8740055 Vezi
8740056 Chamber module LW 1000 floor slab Access LW 800, 2661-2910 mm, Class K 3 8740056 Vezi
8740058 Chamber module LW 1000 floor slab Access LW 800, 2646-2895 mm, Class A 15 8740058 Vezi
8740060 Chamber module LW 1000 floor slab Access LW 600, 2880-3129 mm, Class A/B 8740060 Vezi
8740061 Chamber module LW 1000 floor slab Access LW 600, 2880-3129 mm, Class D 8740061 Vezi
8740062 Chamber module LW 1000 floor slab Access LW 800, 2911-3160 mm, Class K 3 8740062 Vezi
8740064 Chamber module LW 1000 floor slab Access LW 800, 2896-3145 mm, Class A 15 8740064 Vezi
8740066 Chamber module LW 1000 floor slab Access LW 600, 3130-3379 mm, Class A/B 8740066 Vezi
8740067 Chamber module LW 1000 floor slab Access LW 600, 3130-3379 mm, Class D 8740067 Vezi
8740068 Chamber module LW 1000 floor slab Access LW 800, 3161-3410 mm, Class K 3 8740068 Vezi
8740070 Chamber module LW 1000 floor slab Access LW 800, 3146-3395 mm, Class A 15 8740070 Vezi
8740072 Chamber module LW 1000 floor slab Access LW 600, 3380-3629 mm, Class A/B 8740072 Vezi
8740073 Chamber module LW 1000 floor slab Access LW 600, 3380-3629 mm, Class D 8740073 Vezi
8740074 Chamber module LW 1000 floor slab Access LW 800, 3411-3660 mm, Class K 3 8740074 Vezi
8740076 Chamber module LW 1000 floor slab Access LW 800, 3396-3645 mm, Class A 15 8740076 Vezi
8740078 Chamber module LW 1000 floor slab Access LW 600, 3630-3879 mm, Class A/B 8740078 Vezi
8740079 Chamber module LW 1000 floor slab Access LW 600, 3630-3879 mm, Class D 8740079 Vezi
8740080 Chamber module LW 1000 floor slab Access LW 800, 3661-3910 mm, Class K 3 8740080 Vezi
8740082 Chamber module LW 1000 floor slab Access LW 800, 3646-3895 mm, Class A 15 8740082 Vezi
8740122 Chamber module LW 1000 floor slab Access LW 800, 375-624 mm, Class K 3 8740122 Vezi
8740123 Chamber module LW 1000 floor slab Access LW 800, 625-874 mm, Class K 3 8740123 Vezi
8740124 Chamber module LW 1000 floor slab Access LW 800, 875-1124 mm, Class K 3 8740124 Vezi
8740125 Chamber module LW 1000 floor slab Access LW 800, 1125-1374 mm, Class K 3 8740125 Vezi
8740126 Chamber module LW 1000 floor slab Access LW 800, 1375-1624 mm, Class K 3 8740126 Vezi
8740127 Chamber module LW 1000 floor slab Access LW 800, 1625-1874 mm, Class K 3 8740127 Vezi
8740128 Chamber module LW 1000 floor slab Access LW 800, 1875-2124 mm, Class K 3 8740128 Vezi
8740129 Chamber module LW 1000 floor slab Access LW 800, 2125-2374 mm, Class K 3 8740129 Vezi
8740130 Chamber module LW 1000 floor slab Access LW 800, 2375-2624 mm, Class K 3 8740130 Vezi
8740131 Chamber module LW 1000 floor slab Access LW 800, 2625-2874 mm, Class K 3 8740131 Vezi
8740132 Chamber module LW 1000 floor slab Access LW 800, 2875-3124 mm, Class K 3 8740132 Vezi
8740133 Chamber module LW 1000 floor slab Access LW 800, 3125-3374 mm, Class K 3 8740133 Vezi
8740134 Chamber module LW 1000 floor slab Access LW 800, 3375-3624 mm, Class K 3 8740134 Vezi
8740135 Chamber module LW 1000 floor slab Access LW 800, 3625-3874 mm, Class K 3 8740135 Vezi
8740141 Chamber module LW 1000 floor slab Access LW 800, 620-869 mm, Class B 8740141 Vezi
8740142 Chamber module LW 1000 floor slab Access LW 800, 870-1119 mm, Class B 8740142 Vezi
8740143 Chamber module LW 1000 floor slab Access LW 800, 1120-1369 mm, Class B 8740143 Vezi
8740158 Chamber module LW 1000 floor slab Access LW 800, 620-869 mm, Class D 8740158 Vezi
8740159 Chamber module LW 1000 floor slab Access LW 800, 870-1119 mm, Class D 8740159 Vezi
8740160 Chamber module LW 1000 floor slab Access LW 800, 1120-1369 mm, Class D 8740160 Vezi
8740222 Chamber module LW 1000 floor slab Access LW 800, 638-887 mm, K 3, wa.co. 8740222 Vezi
8740223 Chamber module LW 1000 floor slab Access LW 800, 888-1137 mm, K 3, wa.co. 8740223 Vezi
8740224 Chamber module LW 1000 floor slab Access LW 800, 1138-1387 mm, K 3, wa.co. 8740224 Vezi
8740225 Chamber module LW 1000 floor slab Access LW 800, 1388-1637 mm, K 3, wa.co. 8740225 Vezi
8740226 Chamber module LW 1000 floor slab Access LW 800,1638-1887 mm, K 3, wa.co. 8740226 Vezi
  Title Item no.
  Title Item no.
20222 Basic alarm unit with electronic probe 20222 Vezi
20223 Basic alarm unit with optical probe 20223 Vezi
28048 Compressor set for air bubbling 28048 Vezi
28076 Cable fastener Set for engineering chamber 28076 Vezi
28792 TeleControl GSM modem for Comfort control units 230V/400V 28792 Vezi
28793 Aerial with magnetic base for TeleControl Modem, Cable 2.5 m 28793 Vezi
28794 Extension cable for aerial with magnetic base, L: 2 m 28794 Vezi
28799 Connection box for level sensor extension 28799 Vezi
680071 Pressure hose Sold by the metre, 6x4 mm 100 680071 Vezi
680125 Seal for intermediate section 680125 Vezi
680370 Intermediate section 250 mm, for chamber module LW 1000 680370 Vezi
680371 Intermediate section 500 mm, for chamber module LW 1000 680371 Vezi
680373 Connecting bolt set Set of 10 680373 Vezi
680528 Replacement chain pumping statio. Stainless steel, length 2 m 680528 Vezi
680529 Replacement chain pumping statio. Stainless steel, length 3 m 680529 Vezi
680530 Replacement chain for pump statns Stainless steel, length 4 m 680530 Vezi
680531 Replacement chain, pumping stat. Stainless steel, length 5 m 680531 Vezi
80888 Spare part set, optical probe 5 m cable 80888 Vezi
85410 Sealing set Cable conduit, DN 100 85410 Vezi
97713 Installation set Thermostat, Hygrostat 97713 Vezi
97714 Outdoor Cabinet W: 590 mm,for installation control units 97714 Vezi
97715 Warning beacon for outdoor cabinet 97715 Vezi
97716 Outdoor Cabinet W: 460 mm, for installation control unit 97716 Vezi
Outdoor cabinet W: 785 mm,for installation control units 97723 Vezi
97724 Outdoor Cabinet W: 1115mm,for installation control units 97724 Vezi
  Title Item no.
  • Control unit (schaltgeraet): Comfort
  • TÜV test mark (pruefzeichen): ID 1111241937
  • Installation situation (einbausituation): floor slab installation
  • CE marking (ce_kennzeichnung): yes
  • Alarm sensor (alarmgeber): Level sensor
  • Pump (pumpe): GTF 1400
  • (einbautiefe):
  • Impeller type (laufrad_typ): Multi-vane impeller
  • Operating voltage (betriebsspannung): 400  V
  • ATEX (atex): no
