Lifting stati. Aqualift F XL 300l
Mono, SPF 1400-S3

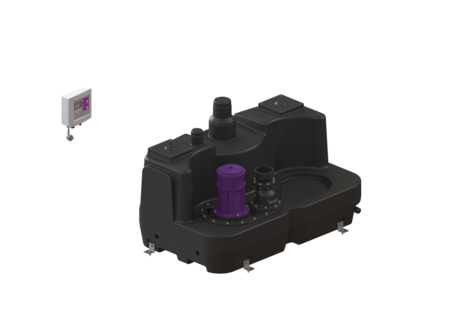

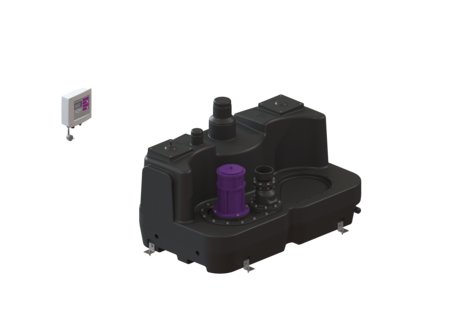

KESSEL Lifting stati. Aqualift F XL 300l Mono, Single unit, 230 V, operating mode S3 - 50 %, with a submersible SPF 1400-S3 pump, shut-off valve without shut-off valve, Backflow preventer, pressure pipe connection vertical
- Different performance classes available
- Pressure sensor for reliable pneumatic level measurement
- Maximum operating reliability due to intelligent control unit (Duo)
| Item no. | 11009 |
|---|---|
| GTIN | 4026092056769 |
| Price group | 50 |
Lifting stati. Aqualift F XL 300l Mono, SPF 1400-S3
The lifting station for faecal and faecal-free wastewater is equipped with one or two submersible pumps and a backflow preventer. The collection tank made of permanently resistant polymer (PE) offers universal connection options and has a screwed access cover. Variant Type of system: Single unit Shut-off valve: without shut-off valve Pressure pipe connection: vertical General characteristics Colour: black Standard: EN 12050-1 Type of wastewater: with sewage Installation situation: free-standing installation System type: Mono Dimensions Net weight: 76,89 kg Gross weight: 96,89 kg Packaging dimension: length: 1650 mm Packaging dimension: width: 1150 mm Packaging dimension: height: 890 mm Tank/drain body Tank volume: 300 l Pumping device Pump: SPF 1400-S3 Number of pumps: 1 Operating mode: S3 - 50 % Impeller type: Multi-vane impeller Free passage: 40 mm Length of mains cable for pump: 5 m Control Control unit: Comfort Level measurement instrument: Immersion pipe Type of level measurement: pneumatic Mains frequency: 50 Hz Operating voltage: 230 V
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Remote signal generator 20 m cable, 2x0.75 q | 20162 | Vezi |
 | Retrofit kit Alarm float switch, for lifting station | 28014 | Vezi |
 | Connection adapter Flange socket DN 100, press. pipe PE | 28020 | Vezi |
 | Backflow preventer DN 80, grey cast iron | 28021 | Vezi |
 | Compressor set for air bubbling | 28048 | Vezi |
 | Connection adapter Flange socket DN 80, press. pipe PE | 28067 | Vezi |
 | Flange adapter DN 80 to DN 100, Grey iron | 28068 | Vezi |
 | Flexible coupling DN 80, L: 200 mm | 28662 | Vezi |
 | Flexible coupling DN 100, for pressure pipes made of PE | 28663 | Vezi |
 | Shut-off valve DN 80, Polymer, horizontal | 28682 | Vezi |
 | Shut-off valve DN 100, Polymer, horizontal | 28683 | Vezi |
 | Shut-off valve DN 100, Polymer | 28698 | Vezi |
 | Shut-off valve DN 150, Polymer | 28699 | Vezi |
 | Flange joint DN 100, for polymer fittings | 28712 | Vezi |
 | Flange joint DN 80, for polymer fittings | 28713 | Vezi |
 | Flange adapter DN 80, for polymer fitting | 28714 | Vezi |
 | Shut-off valve DN 80, Polymer, vertical | 28715 | Vezi |
 | Shut-off valve DN 80, Polymer, vertical with flange | 28716 | Vezi |
 | TeleControl GSM modem for Comfort control units 230V/400V | 28792 | Vezi |
 | Potential-free contact Additio. circuit board for control units | 80072 | Vezi |
| Title | Item no. | ||
|---|---|---|---|
| Retrofit kit Alarm float switch, for lifting station | 28014 | Vezi |
 | Pump drive SPF 1400 230 V, S3, 5 m cable, with capacitor | 28029 | Vezi |
 | Immersion pipe 5 m Schlauch, incl. screws | 28050 | Vezi |
 | Replacement set pump flange with screw set, flange gasket | 28051 | Vezi |
| Flexible coupling DN 100, for pressure pipes made of PE | 28663 | Vezi |
 | Flap housing set Mono, DN 100 | 28676 | Vezi |
 | Control unit Comfort Mono, 230 V | 28731 | Vezi |
 | Seal DN 150 | 680003 | Vezi |
 | Battery 9 V block | 680034 | Vezi |
 | Seal Pump flange | 680045 | Vezi |
 | Attachment bracket with screws (2 ea.) | 680046 | Vezi |
| Screw set galvanised, 14 each | 680047 | Vezi | |
 | Pump flange SPF 1400 - SPF 4500 | 680050 | Vezi |
 | Seal for SPF 1400 - SPF 4500 | 680052 | Vezi |
 | Flap set Rolling ring, flap, flap holder | 680053 | Vezi |
 | Flap housing for Mono systems, without shut-off valve | 680060 | Vezi |
 | Cleaning cover screwed, DN 160 | 680421 | Vezi |
| Manuals | |
|---|---|
| CAD Data | |
| Test Reports and Certificates | |
| Declaration of Performance | |
| Declaration of Conformity |
- Control unit (schaltgeraet):
Comfort
- TÜV test mark (pruefzeichen):
ID 1111241940
- Installation situation (einbausituation):
free-standing installation
- CE marking (ce_kennzeichnung):
yes
- Type of wastewater (abwasserart_de): with sewage
- Pump (pumpe): SPF 1400-S3
- Impeller type (laufrad_typ): Multi-vane impeller
- Shut-off valve (absperreinrichtung): without shut-off valve
