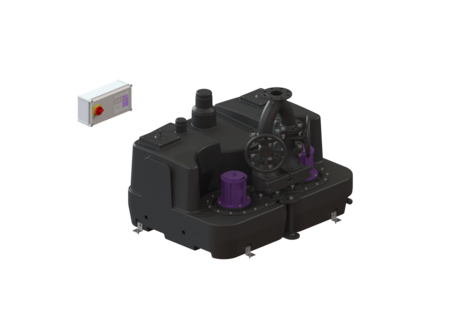

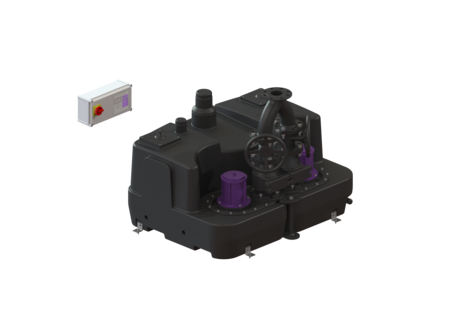

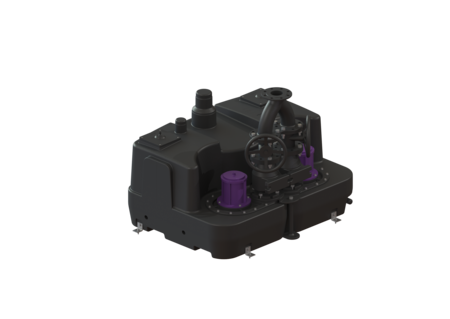

Aqualift F XL, 450 L lift. stat.
Duo, SPF 3000-S3, 2 shut-off valves
KESSEL Aqualift F XL, 450 L lift. stat. Duo, wastewater with sewage, duo pump, 400 V, shut-off valve 2 shut-off valves made of cast iron, with 2 submersible SPF 3000-S3 pumps, operating mode S3 - 50 %
- Different performance classes available
- Pressure sensor for reliable pneumatic level measurement
- Maximum operating reliability due to intelligent control unit (Duo)
| Item no. | 11058 |
|---|---|
| GTIN | 4026092057254 |
| Price group | 50 |
Aqualift F XL, 450 L lift. stat. Duo, SPF 3000-S3, 2 shut-off valves
The lifting station for faecal and faecal-free wastewater is equipped with one or two submersible pumps and a backflow preventer. The collection tank made of permanently resistant polymer (PE) offers universal connection options and has a screwed access cover. Variant Type of system: duo pump Shut-off valve: 2 shut-off valves made of cast iron Pressure pipe connection: vertical General characteristics Colour: black Standard: EN 12050-1 Type of wastewater: with sewage Installation situation: free-standing installation System type: Duo Dimensions Net weight: 216,6 kg Gross weight: 236,6 kg Packaging dimension: length: 1650 mm Packaging dimension: width: 1150 mm Packaging dimension: height: 890 mm Tank/drain body Tank volume: 450 l Pumping device Pump: SPF 3000-S3 Number of pumps: 2 Operating mode: S3 - 50 % Impeller type: Multi-vane impeller Free passage: 40 mm Length of mains cable for pump: 5 m Control Control unit: Comfort Level measurement instrument: Immersion pipe Type of level measurement: pneumatic Mains frequency: 50 Hz Operating voltage: 400 V
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Remote signal generator 20 m cable, 2x0.75 q | 20162 | Vezi |
 | Retrofit kit Alarm float switch, for lifting station | 28014 | Vezi |
 | Connection adapter Flange socket DN 100, press. pipe PE | 28020 | Vezi |
 | Backflow preventer DN 80, grey cast iron | 28021 | Vezi |
 | Compressor set for air bubbling | 28048 | Vezi |
 | Connection adapter Flange socket DN 80, press. pipe PE | 28067 | Vezi |
 | Flange adapter DN 80 to DN 100, Grey iron | 28068 | Vezi |
 | Flexible coupling DN 80, L: 200 mm | 28662 | Vezi |
 | Flexible coupling DN 100, for pressure pipes made of PE | 28663 | Vezi |
 | Shut-off valve DN 80, Polymer, horizontal | 28682 | Vezi |
 | Shut-off valve DN 100, Polymer, horizontal | 28683 | Vezi |
 | Shut-off valve DN 100, Polymer | 28698 | Vezi |
 | Shut-off valve DN 150, Polymer | 28699 | Vezi |
 | Flange joint DN 100, for polymer fittings | 28712 | Vezi |
 | Flange joint DN 80, for polymer fittings | 28713 | Vezi |
 | Flange adapter DN 80, for polymer fitting | 28714 | Vezi |
 | Shut-off valve DN 80, Polymer, vertical | 28715 | Vezi |
 | Shut-off valve DN 80, Polymer, vertical with flange | 28716 | Vezi |
 | TeleControl GSM modem for Comfort control units 230V/400V | 28792 | Vezi |
| Title | Item no. | ||
|---|---|---|---|
| Retrofit kit Alarm float switch, for lifting station | 28014 | Vezi |
| Backflow preventer DN 80, grey cast iron | 28021 | Vezi |
 | Pump drive SPF 3000 400 V, S3, 5 m cable | 28027 | Vezi |
 | Shut-off valve DN 80, grey cast iron, with handwheel | 28041 | Vezi |
 | Y-pipe DN 80 | 28042 | Vezi |
 | Seal DN 80, for flange | 28043 | Vezi |
 | Immersion pipe 5 m Schlauch, incl. screws | 28050 | Vezi |
 | Replacement set pump flange with screw set, flange gasket | 28051 | Vezi |
 | Non-return flap made of polymer, DN 80 | 28074 | Vezi |
 | Comfort control unit 400V, Aqualift Duo, 2x4.0-6.3 A | 28758 | Vezi |
 | Seal Rolling ring, DN 100 | 680001 | Vezi |
 | Seal DN 150 | 680003 | Vezi |
 | Battery 9 V block | 680034 | Vezi |
 | Seal Pump flange | 680045 | Vezi |
 | Attachment bracket with screws (2 ea.) | 680046 | Vezi |
| Screw set galvanised, 14 each | 680047 | Vezi | |
 | Pump flange SPF 1400 - SPF 4500 | 680050 | Vezi |
 | Seal for SPF 1400 - SPF 4500 | 680052 | Vezi |
 | Cleaning cover screwed, DN 160 | 680421 | Vezi |
| Manuals | |
|---|---|
| Declaration of Performance | |
| Declaration of Conformity |
- Control unit (schaltgeraet):
Comfort
- TÜV test mark (pruefzeichen):
ID 1111241940
- Installation situation (einbausituation):
free-standing installation
- CE marking (ce_kennzeichnung):
yes
- Type of wastewater (abwasserart_de): with sewage
- Pump (pumpe): SPF 3000-S3
- Impeller type (laufrad_typ): Multi-vane impeller
- Shut-off valve (absperreinrichtung): 2 shut-off valves made of cast iron
