Aqualift S Compact lift stat.
Mono, GTF 1200 resist., Floor slab

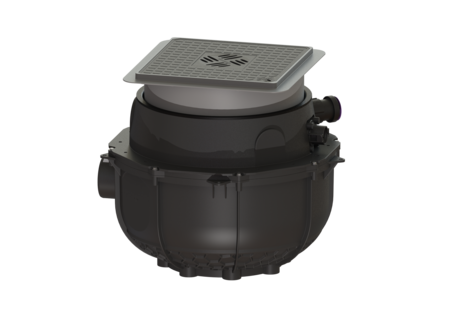

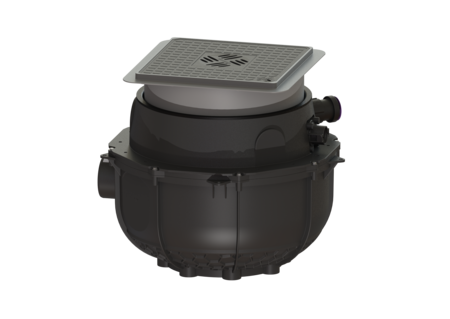

KESSEL Aqualift S Compact lift stat. Mono, wastewater without sewage, floor slab installation, with a submersible GTF 1200 resistant pump, level measurement Float switch, type of cover Cover plate, black
- Space-saving due to installation in floor slab with integrated drainage function
- Easy retrofitting from Mono to Duo possible
- Quiet operation, as the pump installation does not cause any structure-borne sound emissions.
| Item no. | 281200SC |
|---|---|
| GTIN | 4026092093719 |
| Price group | 20 |
Aqualift S Compact lift stat. Mono, GTF 1200 resist., Floor slab
The ready to plug in lifting station for faecal-free wastewater is equipped with one or two submersible pumps and a backflow preventer. The collection tank made of permanently resistant polymer (PE) has an open pump tank. One-handed closures enable easy removal of the integrated components. The system for installation in the floor slab is preassembled for final installation on site. Variant Type of system: Single unit Resistant: Resistant to saline media, wastewater from water softening systems and wastewater containing condensate from heating systems Pump control: Float switch Backflow preventer: integrated General characteristics Colour: black Standard: EN 12050-2 Type of wastewater: without sewage Installation situation: floor slab installation Delivery state: Installation-ready (connection parts must be connected on site) System type: Mono Dimensions Net weight: 17,92 kg Gross weight: 21,2 kg Groundwater resistant from lower edge of base section: 3000 mm Installation depth: 490 - 620 mm Type of height adjustability: vertically adjustable upper section Length: 617 mm Width: 585 mm Packaging dimension: length: 590 mm Packaging dimension: width: 590 mm Packaging dimension: height: 675 mm Tank/drain body Pressure pipe connection (DN): 32 Pressure pipe connection (OD): 40 mm Inlet nominal size (DN): 100 mm Pumping volume: 16 l Tank volume: 65 l Coverage features Type of cover: Cover plate Cover material: Polymer Colour of cover: black Width of cover: 366 mm Length of cover: 366 mm Drainage function: yes Locking: Lock & Lift Load class: K 3 (EN 1253-1) Pumping device Pump: GTF 1200 resistant Number of pumps: 1 Weight, pump: 10 kg Connection type: Schuko (earthed contact) 2-pin Protection class: I Insulation class: F Protection class (pump): IP 68 (3m) Max. temperature (permanent) of conveyed material: 40 °C Hot water resistance for a short time (2 min): 80 °C Max. pumping capacity: 15,5 m³/h Max. pumping height: 9 m Speed: 2650 U/min Power P1: 1,4 kW Power P2: 0,84 kW Operating mode: S3 - 10 % Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Free passage: 30 mm Type of fuse required (electrical protection): C 16 A Length of mains cable for pump: 5 m Rated current: 6,2 A Control Motor protection switch: yes Level measurement instrument: Float switch Type of level measurement: mechanical Mains frequency: 50 Hz Operating voltage: 230 V Connection type: Schuko (earthed contact) 2-pin
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Adapter DN 50/70 | 27126 | Vezi |
 | Adapter DN 100/70 | 27602 | Vezi |
 | Pressure pipe set 5 m pressure hose, DA 40 mm | 28040 | Vezi |
| Pressure pipe set with 5 m pressure hose, DA 50 mm | 28062 | Vezi |
 | Adapter for pressure pipe connection, DN 32, PE | 28086 | Vezi |
 | Inlet socket DN 50, with seal, Threaded ring | 39005 | Vezi |
 | Inlet socket DN 70, with seal, Threaded ring | 39007 | Vezi |
 | Inlet socket DN 100, with seal, Threaded ring | 39100 | Vezi |
 | Odour trap Multistop, System 125 | 48500 | Vezi |
 | Odour trap Megastop | 48550 | Vezi |
 | Hair filter Polymer, for System 125 bathroom drains | 48700 | Vezi |
 | Hole saw for DN 50/70/100 | 500101 | Vezi |
 | Odour trap for The Ultraflat 79 | 680696 | Vezi |
 | Drain body for cover plate for odour trap 50 mm, black | 680795 | Vezi |
 | Drain body for cover plate for Multistop, black | 680796 | Vezi |
 | Drain body for cover plate for odour trap 50 mm, grey | 680797 | Vezi |
 | Drain body for cover plate for Multistop, grey | 680798 | Vezi |
 | Cable accessories Extension for probe | 80889 | Vezi |
 | Cable accessories Extension for pump | 80891 | Vezi |
 | Cover plate surface water resistant, black 366x366mm | 830050 | Vezi |
 | Cover plate surface water resistant, tileable | 830052 | Vezi |
 | Extension section H: 200 mm | 83070 | Vezi |
 | Extension section H: 234 mm, with flange and mating flange | 83073 | Vezi |
 | Extension section H: 360 mm, with central flange | 83075 | Vezi |
 | Waterproof concrete install. kit OD: 40 mm, for building contractors | 83077 | Vezi |
 | Seal for pipe penetration, DN 50 | 850114 | Vezi |
 | Seal for pipe penetration, DN 70 | 850116 | Vezi |
 | Seal for pipe penetration, DN 100 | 850117 | Vezi |
| Title | Item no. | ||
|---|---|---|---|
| Inlet socket DN 50, with seal, Threaded ring | 39005 | Vezi |
 | Slotted cover 138x138 mm, Polymer | 60101S | Vezi |
 | Locking key for Ecoguss slotted gratings,Lock & Lift | 67007 | Vezi |
 | One-handed closure for backflow preventer | 680018 | Vezi |
 | Seal for upper section, from 07/2014 | 680150 | Vezi |
 | Pump connection with seal and flap | 680475 | Vezi |
 | Pressure pipe connection with seal and screws | 680758 | Vezi |
 | Pump connection Minilift L, Aqualift S | 680760 | Vezi |
 | Flap housing Mono, with pump connector | 680761 | Vezi |
 | Turn fastener for pump connection lock | 680762 | Vezi |
 | Pump hanger for Aqualift S Compact, Mono, GTF 1200 | 680772 | Vezi |
 | Replacement pump GTF 1200 resistant, with float switch | 680953 | Vezi |
 | Seal for cover plate, System 330 mm | 686114 | Vezi |
 | Cover plate black with slotted cover | 830053 | Vezi |
 | Upper section system 400 Lockable, silver-grey | 830065 | Vezi |
| Manuals | |
|---|---|
| CAD Data | |
| Test Reports and Certificates | |
| Declaration of Performance | |
| Declaration of Conformity |
- CE marking (ce_kennzeichnung):
yes
- Type of wastewater (abwasserart_de): without sewage
- Cover material (abdeckung_material):
Polymer
- TÜV test mark (pruefzeichen):
ID 1111241937
- Installation situation (einbausituation):
floor slab installation
- Type of cover (abdeckungsart): Cover plate
- Load class (belastungsklasse): K 3 (EN 1253-1)
- Pump (pumpe): GTF 1200 resistant
- (ausfuehrung):
