Aqualift S Compact lift stat.

Duo, GTF 1200 res., Floor slab, tileable

281230XC
281230XC
PDF product data sheet

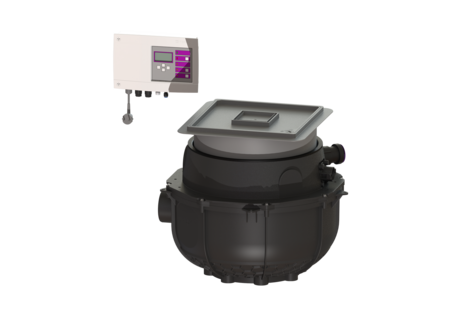

KESSEL Aqualift S Compact lift stat. Duo, wastewater without sewage, floor slab installation, with 2 submersible GTF 1200 resistant pumps, level measurement Immersion pipe, type of cover tileable cover plate, silver grey

  • Space-saving due to installation in floor slab with integrated drainage function
  • Easy retrofitting from Mono to Duo possible
  • Quiet operation, as the pump installation does not cause any structure-borne sound emissions.
Item no. 281230XC
GTIN 4026092093757
Price group 20

Aqualift S Compact lift stat. Duo, GTF 1200 res., Floor slab, tileable
The ready to plug in lifting station for faecal-free wastewater is equipped with one or two submersible pumps and a backflow preventer. The collection tank made of permanently resistant polymer (PE) has an open pump tank. One-handed closures enable easy removal of the integrated components. The system for installation in the floor slab is preassembled for final installation on site. Variant Type of system: duo pump Resistant: Resistant to saline media, wastewater from water softening systems and wastewater containing condensate from heating systems Pump control: Control unit Backflow preventer: integrated General characteristics Colour: black Standard: EN 12050-2 Type of wastewater: without sewage Installation situation: floor slab installation Delivery state: Installation-ready (connection parts must be connected on site) System type: Duo Dimensions Net weight: 22,34 kg Gross weight: 23,84 kg Groundwater resistant from lower edge of base section: 3000 mm Installation depth: 490 - 620 mm Type of height adjustability: vertically adjustable upper section Length: 617 mm Width: 585 mm Packaging dimension: length: 600 mm Packaging dimension: width: 600 mm Packaging dimension: height: 480 mm Tank/drain body Pressure pipe connection (DN): 32 Pressure pipe connection (OD): 40 mm Inlet nominal size (DN): 100 mm Pumping volume: 20 l Tank volume: 65 l Coverage features Type of cover: tileable cover plate Cover material: Polymer Colour of cover: silver grey Width of cover: 366 mm Length of cover: 366 mm Drainage function: yes Locking: Lock & Lift Load class: K 3 (EN 1253-1) Max. flooring height: 16 mm Pumping device Pump: GTF 1200 resistant Number of pumps: 2 Weight, pump: 10 kg Connection type: coded plug Protection class: I Insulation class: F Protection class (pump): IP 68 (3m) Max. temperature (permanent) of conveyed material: 40 °C Hot water resistance for a short time (2 min): 80 °C Max. pumping capacity: 15,5 m³/h Max. pumping height: 9 m Speed: 2650 U/min Power P1: 1,4 kW Power P2: 0,84 kW Operating mode: S1 Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Free passage: 30 mm Length of mains cable for pump: 5 m Rated current: 6,2 A Control Control unit: Comfort Control unit function: With alarm message Motor protection switch: yes Alarm sensor: optical probe Level measurement instrument: Immersion pipe Type of level measurement: pneumatic Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 230 V Connection type: coded plug Length of mains cable for control unit: 1,4 m Potential-free contact: optional GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Warning equipment version: acoustic and optical signal Type of fuse required (electrical protection): C 16 A
  Title Item no.
  Title Item no.
  Title Item no.
20162 Remote signal generator 20 m cable, 2x0.75 q 20162 Vezi
20222 Basic alarm unit with electronic probe 20222 Vezi
20223 Basic alarm unit with optical probe 20223 Vezi
27126 Adapter DN 50/70 27126 Vezi
27602 Adapter DN 100/70 27602 Vezi
28016 Retrofit kit Alarm float switch 28016 Vezi
28040 Pressure pipe set 5 m pressure hose, DA 40 mm 28040 Vezi
28048 Compressor set for air bubbling 28048 Vezi
28062 Pressure pipe set with 5 m pressure hose, DA 50 mm 28062 Vezi
28086 Adapter for pressure pipe connection, DN 32, PE 28086 Vezi
28792 TeleControl GSM modem for Comfort control units 230V/400V 28792 Vezi
28793 Aerial with magnetic base for TeleControl Modem, Cable 2.5 m 28793 Vezi
28794 Extension cable for aerial with magnetic base, L: 2 m 28794 Vezi
39005 Inlet socket DN 50, with seal, Threaded ring 39005 Vezi
39007 Inlet socket DN 70, with seal, Threaded ring 39007 Vezi
39100 Inlet socket DN 100, with seal, Threaded ring 39100 Vezi
48500 Odour trap Multistop, System 125 48500 Vezi
48550 Odour trap Megastop 48550 Vezi
48700 Hair filter Polymer, for System 125 bathroom drains 48700 Vezi
500101 Hole saw for DN 50/70/100 500101 Vezi
680071 Pressure hose Sold by the metre, 6x4 mm 100 680071 Vezi
680696 Odour trap for The Ultraflat 79 680696 Vezi
680795 Drain body for cover plate for odour trap 50 mm, black 680795 Vezi
680796 Drain body for cover plate for Multistop, black 680796 Vezi
680797 Drain body for cover plate for odour trap 50 mm, grey 680797 Vezi
680798 Drain body for cover plate for Multistop, grey 680798 Vezi
80072 Potential-free contact Additio. circuit board for control units 80072 Vezi
80074 Potential-free contact Extension set for control units Basic 80074 Vezi
80889 Cable accessories Extension for probe 80889 Vezi
80891 Cable accessories Extension for pump 80891 Vezi
830050 Cover plate surface water resistant, black 366x366mm 830050 Vezi
830052 Cover plate surface water resistant, tileable 830052 Vezi
83070 Extension section H: 200 mm 83070 Vezi
83075 Extension section H: 360 mm, with central flange 83075 Vezi
83077 Waterproof concrete install. kit OD: 40 mm, for building contractors 83077 Vezi
850114 Seal for pipe penetration, DN 50 850114 Vezi
850116 Seal for pipe penetration, DN 70 850116 Vezi
850117 Seal for pipe penetration, DN 100 850117 Vezi
  Title Item no.
28706 Splash guard set for optical probe 28706 Vezi
28746 Control unit Comfort Duo, 230 V 28746 Vezi
39005 Inlet socket DN 50, with seal, Threaded ring 39005 Vezi
67007 Locking key for Ecoguss slotted gratings,Lock & Lift 67007 Vezi
680018 One-handed closure for backflow preventer 680018 Vezi
680034 Battery 9 V block 680034 Vezi
680071 Pressure hose Sold by the metre, 6x4 mm 100 680071 Vezi
680150 Seal for upper section, from 07/2014 680150 Vezi
680224 Cover tileable, Lock & Lift, ABS 680224 Vezi
680475 Pump connection with seal and flap 680475 Vezi
680702 Release key for Lock & Lift 680702 Vezi
680758 Pressure pipe connection with seal and screws 680758 Vezi
680760 Pump connection Minilift L, Aqualift S 680760 Vezi
680762 Turn fastener for pump connection lock 680762 Vezi
680776 Immersion pipe level measurement for Aqualift S Compact 680776 Vezi
680777 Fixing for immersion pipe for Aqualift S, Fastening clip, Screw 680777 Vezi
680778 Fixing for sensor for Aqualift S, Fastening clip, Screw 680778 Vezi
680780 Pump hanger for Aqualift S Compact, Duo, GTF 1200 680780 Vezi
680781 Flap housing Duo, with pump connector 680781 Vezi
680952 Replacement pump GTF 1200 resistant, without float switch 680952 Vezi
686114 Seal for cover plate, System 330 mm 686114 Vezi
80888 Spare part set, optical probe 5 m cable 80888 Vezi
80892 Adapter Set optical probe 80892 Vezi
830054 Cover plate Tileable with drainage function 830054 Vezi
830065 Upper section system 400 Lockable, silver-grey 830065 Vezi
  • CE marking (ce_kennzeichnung): yes
  • Type of wastewater (abwasserart_de): without sewage
  • Control unit (schaltgeraet): Comfort
  • Cover material (abdeckung_material): Polymer
  • TÜV test mark (pruefzeichen): ID 1111241937
  • Installation situation (einbausituation): floor slab installation
  • Type of cover (abdeckungsart): tileable cover plate
  • Load class (belastungsklasse): K 3 (EN 1253-1)
  • Pump (pumpe): GTF 1200 resistant
  • (ausfuehrung):
