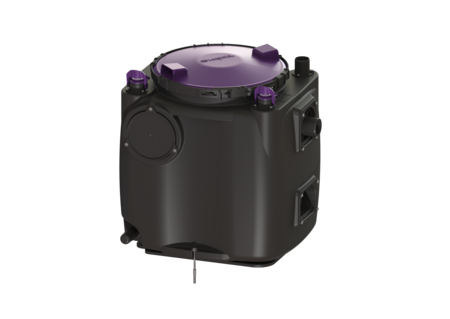

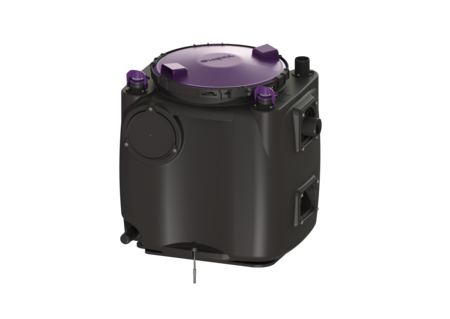

Lifting station Aqualift S 100

Mono, GTF 600, Free-standing set-up

28511
28511
28511
PDF product data sheet

KESSEL Lifting station Aqualift S 100 Mono, wastewater without sewage, Schuko (earthed contact) 2-pin, pump control by Float switch, with a submersible GTF 600 pump, operating mode S1

  • Easy tool-free maintenance
  • Tank made of PE, resistant to aggressive wastewater
  • Including backflow preventer for the pressure pipe
Item no. 28511
GTIN 4026092092880
Price group 20

Lifting station Aqualift S 100 Mono, GTF 600, Free-standing set-up
The ready to plug in lifting station for faecal-free wastewater is equipped with one or two submersible pumps and a backflow preventer. The collection tank made of permanently resistant polymer (PE) has an open pump tank. One-handed closures enable easy removal of the integrated components. Variant Type of system: Single unit Pump control: Float switch Backflow preventer: integrated General characteristics Colour: black Standard: EN 12050-2 Type of wastewater: without sewage Installation situation: free-standing installation Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected) System type: Mono Dimensions Net weight: 28,25 kg Gross weight: 28,25 kg Length: 670 mm Width: 530 mm Height: 650 mm Packaging dimension: length: 800 mm Packaging dimension: width: 700 mm Packaging dimension: height: 779 mm Tank/drain body Pressure pipe connection (DN): 50 Pressure pipe connection (OD): 63 mm Inlet nominal size (DN): 100 Pumping volume: 25 l Tank volume: 120 l Coverage features Type of cover: Cover Cover material: Polymer Colour of cover: violet Locking: Quick-release closure Tightness: odour-tight Pumping device Pump: GTF 600 Number of pumps: 1 Weight, pump: 6 kg Connection type: Schuko (earthed contact) 2-pin Operating voltage: 230 V Protection class: I Insulation class: F Protection class (pump): IP 68 (3m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 12 m³/h Max. pumping height: 8 m Speed: 2750 U/min Power P1: 0,65 kW Power P2: 0,4 kW Operating mode: S1 Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Free passage: 10 mm Type of fuse required (pump): C 16 A Length of mains cable for pump: 5 m Rated current: 2,9 A Control Motor protection switch: yes Level measurement instrument: Float switch Type of level measurement: mechanical Mains frequency: 50 Hz Operating voltage: 230 V Connection type: Schuko (earthed contact) 2-pin
  Title Item no.
  Title Item no.
80201 Commissioning Lifting station Aqualift S 80201 Vezi
80301 Maintenance Lifting station Aqualift S 80301 Vezi
  Title Item no.
20222 Basic alarm unit with electronic probe 20222 Vezi
20223 Basic alarm unit with optical probe 20223 Vezi
20224 Basic alarm unit with optical probe 10 m 20224 Vezi
500100 Hole saw for DN 100/125/150 500100 Vezi
500101 Hole saw for DN 50/70/100 500101 Vezi
80074 Potential-free contact Extension set for control units Basic 80074 Vezi
80889 Cable accessories Extension for probe 80889 Vezi
80891 Cable accessories Extension for pump 80891 Vezi
850114 Seal for pipe penetration, DN 50 850114 Vezi
850116 Seal for pipe penetration, DN 70 850116 Vezi
850117 Seal for pipe penetration, DN 100 850117 Vezi
850118 Seal for pipe penetration, DN 125 850118 Vezi
850119 Seal for pipe penetration, DN 150 850119 Vezi
  Title Item no.
680018 One-handed closure for backflow preventer 680018 Vezi
680067 Seal for pressure pipe connection 680067 Vezi
680076 Cover with seal 680076 Vezi
680150 Seal for upper section, from 07/2014 680150 Vezi
680326 Cover d: 420 mm, up to 03/2004 680326 Vezi
680475 Pump connection with seal and flap 680475 Vezi
680760 Pump connection Minilift L, Aqualift S 680760 Vezi
680761 Flap housing Mono, with pump connector 680761 Vezi
680762 Turn fastener for pump connection lock 680762 Vezi
680887 Impeller GTF 600, free passage 30 mm 680887 Vezi
680888 Spiral housing GTF 600, free passage 30 mm 680888 Vezi
680967 Pump hanger Mono, GTF 600 680967 Vezi
680969 Bracket for ressure pipe, Mono 680969 Vezi
680975 Clamp fastener for cover 450 mm 680975 Vezi
680976 Replacement pump GTF 600 w. float switch, Aqualift S 100/200, 5m 680976 Vezi
680980 Blind plug for Aqualift S 100/200 lifting station 680980 Vezi
680981 Cable gland for Aqualift S 100/200 680981 Vezi
680982 Venting socket DN 50 for Aqualift S 100 lifting station 680982 Vezi
680983 Pressure pipe DN 32 for Aqualift S 100 GTF 600 680983 Vezi
680985 Connection adapter for Aqualift S 100/200 locking device 680985 Vezi
680986 Inlet socket DN 100 for Aqualift S 100/200 680986 Vezi
680990 Sound absorption mat for Aqualift S 100 lifting station 680990 Vezi
  • Cover material (abdeckung_material): Polymer
  • TÜV test mark (pruefzeichen): ID 1111241937
  • Installation situation (einbausituation): free-standing installation
  • CE marking (ce_kennzeichnung): yes
  • Type of wastewater (abwasserart_de): without sewage
  • Pump (pumpe): GTF 600
  • (ausfuehrung):
  • Type of system (anlagenart): Single unit
