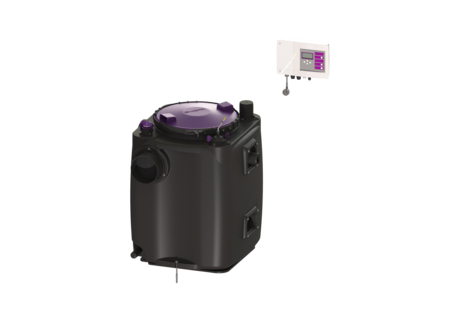

Lifting station Aqualift S 200

Duo, GTF 1250, Free-standing set-up

28518
28518
PDF product data sheet

KESSEL Lifting station Aqualift S 200 Duo, wastewater without sewage, coded plug, pump control by Control unit, control unit Comfort, with 2 submersible GTF 1250 pumps, operating mode S1

  • Easy tool-free maintenance
  • Tank made of PE, resistant to aggressive wastewater
  • Including backflow preventer for the pressure pipe
Item no. 28518
GTIN 4026092092941
Price group 20

Lifting station Aqualift S 200 Duo, GTF 1250, Free-standing set-up
The ready to plug in lifting station for faecal-free wastewater is equipped with one or two submersible pumps and a backflow preventer. The collection tank made of permanently resistant polymer (PE) has an open pump tank. One-handed closures enable easy removal of the integrated components. Variant Type of system: duo pump Pump control: Control unit Backflow preventer: integrated General characteristics Colour: black Standard: EN 12050-2 Type of wastewater: without sewage Installation situation: free-standing installation Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected) System type: Duo Dimensions Net weight: 42 kg Gross weight: 49 kg Length: 670 mm Width: 655 mm Height: 815 mm Packaging dimension: length: 900 mm Packaging dimension: width: 900 mm Packaging dimension: height: 939 mm Tank/drain body Pressure pipe connection (DN): 50 Pressure pipe connection (OD): 63 mm Inlet nominal size (DN): 100 mm Pumping volume: 100 l Tank volume: 220 l Coverage features Type of cover: Cover Cover material: Polymer Colour of cover: violet Locking: Quick-release closure Tightness: odour-tight Pumping device Pump: GTF 1250 Number of pumps: 2 Weight, pump: 10 kg Connection type: coded plug Rated current: 5,4 A Protection class: I Insulation class: F Protection class (pump): IP 68 (3m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 20 m³/h Max. pumping height: 11 m Speed: 2700 U/min Power P1: 1,3 kW Power P2: 0,8 kW Operating mode: S1 Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Free passage: 30 mm Length of mains cable for pump: 5 m Control Control unit: Comfort Control unit function: With alarm message Motor protection switch: yes Level measurement instrument: Immersion pipe Type of level measurement: pneumatic Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 230 V Connection type: coded plug Length of mains cable for control unit: 1,4 m Potential-free contact: optional GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Warning equipment version: acoustic and optical signal Type of fuse required (electrical protection): C 16 A
  Title Item no.
  Title Item no.
80201 Commissioning Lifting station Aqualift S 80201 Vezi
80301 Maintenance Lifting station Aqualift S 80301 Vezi
  Title Item no.
20162 Remote signal generator 20 m cable, 2x0.75 q 20162 Vezi
28016 Retrofit kit Alarm float switch 28016 Vezi
500100 Hole saw for DN 100/125/150 500100 Vezi
500101 Hole saw for DN 50/70/100 500101 Vezi
80072 Potential-free contact Additio. circuit board for control units 80072 Vezi
80889 Cable accessories Extension for probe 80889 Vezi
80891 Cable accessories Extension for pump 80891 Vezi
850114 Seal for pipe penetration, DN 50 850114 Vezi
850116 Seal for pipe penetration, DN 70 850116 Vezi
850117 Seal for pipe penetration, DN 100 850117 Vezi
850118 Seal for pipe penetration, DN 125 850118 Vezi
850119 Seal for pipe penetration, DN 150 850119 Vezi
  Title Item no.
28746 Control unit Comfort Duo, 230 V 28746 Vezi
680018 One-handed closure for backflow preventer 680018 Vezi
680034 Battery 9 V block 680034 Vezi
680067 Seal for pressure pipe connection 680067 Vezi
680076 Cover with seal 680076 Vezi
680150 Seal for upper section, from 07/2014 680150 Vezi
680326 Cover d: 420 mm, up to 03/2004 680326 Vezi
680475 Pump connection with seal and flap 680475 Vezi
680760 Pump connection Minilift L, Aqualift S 680760 Vezi
680762 Turn fastener for pump connection lock 680762 Vezi
680781 Flap housing Duo, with pump connector 680781 Vezi
680804 Multi-vane impeller for STF 1300 680804 Vezi
680974 Pump hanger GTF 1250, Duo 680974 Vezi
680975 Clamp fastener for cover 450 mm 680975 Vezi
680979 Replacement pump GTF 1250 without float switch, 5 m 680979 Vezi
680980 Blind plug for Aqualift S 100/200 lifting station 680980 Vezi
680981 Cable gland for Aqualift S 100/200 680981 Vezi
680986 Inlet socket DN 100 for Aqualift S 100/200 680986 Vezi
680987 Inlet socket DN 150 for Aqualift S 100/200 680987 Vezi
680988 Immersion pipe for Aqualift S 100 lifting station 680988 Vezi
680990 Sound absorption mat for Aqualift S 100 lifting station 680990 Vezi
680992 Pressure pipe DN 32 for Aqualift S 200 GTF 600 680992 Vezi
680994 Venting socket DN 70 for Aqualift S 200 680994 Vezi
680995 Connector for Aqualift S 200 immersion pipe 680995 Vezi
680996 Hose connection set for immersion pipes, length 5 m 680996 Vezi
680999 Seal DN65, for backflow preventer 680999 Vezi
  • CE marking (ce_kennzeichnung): yes
  • Type of wastewater (abwasserart_de): without sewage
  • Control unit (schaltgeraet): Comfort
  • Cover material (abdeckung_material): Polymer
  • TÜV test mark (pruefzeichen): ID 1111241937
  • Installation situation (einbausituation): free-standing installation
  • Pump (pumpe): GTF 1250
  • (ausfuehrung):
  • Type of system (anlagenart): duo pump
