TK Aqualift M UF Duo Resistant
KESSEL Techn. kit Aqualift M Underfloor Duo Resistant, with 2 submersible SPZ 1000 resistant pumps, operating mode S3 - 50 %, duo pump, level measurement pneumatic, pumping height 10 m
| Item no. | 28704C-TK |
|---|---|
| GTIN | 4026092106891 |
| Price group | 20 |

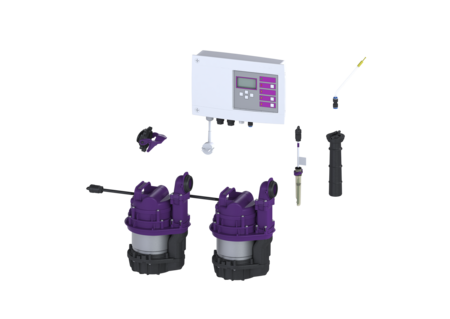

For combination with a KESSEL shell kit for creating a Duo lifting station for wastewater with sewage with an SPZ1000 wastewater pump. The ready to plug in lifting station for wastewater with sewage is equipped with a submersible pump and a backflow preventer. The collection tank made of permanently resistant polymer (PE) has an open pump tank. One-handed closures enable easy removal of the integrated components. The system for installation in the floor slab is pre-assembled for final installation on site. The station is controlled by a user-friendly control unit, which is optionally integrated in the building management system using a potential-free contact or alarm and collective fault messages that can be output through a GSM interface. KESSEL technology kit consisting of: - Pumps with macerator and multi-vane vortex impeller for maximum operating safety - Resistant to saline media, wastewater from water softening systems and wastewater containing condensate from heating systems - Comfort control unit 230 V - Optical alarm probe - Pneumatic level measurement Variant Type of system: duo pump Resistant: Resistant to waste water containing salt, softener and condensate Pump control: Control unit Dimensions Net weight: 25 kg Gross weight: 25 kg Packaging dimension: length: 785 mm Packaging dimension: width: 385 mm Packaging dimension: height: 465 mm Pumping device Pump: SPZ 1000 resistant Number of pumps: 2 Weight, pump: 10 kg Connection type: coded plug Protection class: I Insulation class: F Cos phi - power factor: 0,97 Protection class (pump): IP 68 (3m/48h) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Hot water resistance for a short time (2 min): 80 °C Max. pumping capacity: 11,5 m³/h Max. pumping height: 10 m Speed: 2800 U/min Power P1: 1,2 kW Power P2: 0,69 kW Operating mode: S3 - 50 % Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Macerator Length of mains cable for pump: 5 m Rated current: 5,2 A Control Control unit: Comfort Operating voltage: 230 V Protection class control unit: IP 54 Type of fuse required (control unit): Fuse protection through control unit 230 V Self-diagnosis system (SDS): yes Battery buffering: yes Multi-line display: yes Log book function: yes Potential-free contact: optional Alarm sensor: optical probe Level measurement instrument: Immersion pipe Type of level measurement: pneumatic USB interface: yes Control unit function: With alarm message Connection type: coded plug Length of mains cable for control unit: 1,4 m GSM interface: yes Motor protection switch: yes Warning equipment version: acoustic and optical signal
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Remote signal generator 20 m cable, 2x0.75 q | 20162 | Vezi |
 | Alarm unit with electronic probe | 20222 | Vezi |
 | Alarm unit with optical probe | 20223 | Vezi |
 | Alarm unit with optical probe 10 m | 20224 | Vezi |
 | System isolator CleverLoop L | 23000 | Vezi |
 | Ventilation valve CleverVent | 23001 | Vezi |
 | Adapter DN 50/70 | 27126 | Vezi |
 | Adapter DN 100/70 | 27602 | Vezi |
 | Retrofit kit Alarm float switch | 28016 | Vezi |
 | Pressure pipe set 5 m pressure hose, DA 40 mm | 28040 | Vezi |
 | Compressor set for air bubbling | 28048 | Vezi |
 | Pressure pipe set with 5 m pressure hose, DA 50 mm | 28062 | Vezi |
 | Adapter for pressure pipe connection, DN 32, PE | 28086 | Vezi |
 | TeleControl GSM modem for Comfort control units 230V/400V | 28792 | Vezi |
 | Aerial with magnetic base for TeleControl Modem, Cable 2.5 m | 28793 | Vezi |
 | Extension cable for aerial with magnetic base, L: 2 m | 28794 | Vezi |
 | Inlet socket DN 50, with seal, Threaded ring | 39005 | Vezi |
 | Inlet socket DN 70, with seal, Threaded ring | 39007 | Vezi |
 | Inlet socket DN 100, with seal, Threaded ring | 39100 | Vezi |
 | Odour trap Multistop, System 125 | 48500 | Vezi |
 | Odour trap Megastop | 48550 | Vezi |
 | Hair filter Polymer, for System 125 bathroom drains | 48700 | Vezi |
 | Hole saw for DN 50/70/100 | 500101 | Vezi |
 | Pressure hose Sold by the metre, 6x4 mm 100 | 680071 | Vezi |
 | Odour trap for The Ultraflat 79 | 680696 | Vezi |
 | Drain body for cover plate for odour trap 50 mm, black | 680795 | Vezi |
 | Drain body for cover plate for Multistop, black | 680796 | Vezi |
 | Drain body for cover plate for odour trap 50 mm, grey | 680797 | Vezi |
 | Drain body for cover plate for Multistop, grey | 680798 | Vezi |
 | Adapter DN 40/50 | 681111 | Vezi |
 | Potential-free contact Additio. circuit board for control units | 80072 | Vezi |
 | Potential-free contact Extension set for control units | 80074 | Vezi |
 | Cable accessories Extension for probe | 80889 | Vezi |
 | Cable accessories Extension for pump | 80891 | Vezi |
 | Cover plate surface water resistant, black 366x366mm | 830050 | Vezi |
 | Cover plate surface water resistant, tileable | 830052 | Vezi |
 | Extension section H: 200 mm | 83070 | Vezi |
 | Extension section H: 234 mm, with flange and mating flange | 83073 | Vezi |
 | Extension section H: 360 mm, with central flange | 83075 | Vezi |
 | Waterproof concrete install. kit OD: 40 mm, for building contractors | 83077 | Vezi |
| Waterproof concrete install. kit OD: 50 mm, for building contractors | 83079 | Vezi |
 | Seal for pipe penetration, DN 50 | 850114 | Vezi |
 | Seal for pipe penetration, DN 70 | 850116 | Vezi |
 | Seal for pipe penetration, DN 100 | 850117 | Vezi |
| Title | Item no. |
|---|
| Data Sheet | |
|---|---|
| Test Reports and Certificates |
- Control unit (schaltgeraet): Comfort
- Number of pumps (anzahl_pumpen): 2
- Resistant (resistant): Resistant to waste water containing salt, softener and condensate
