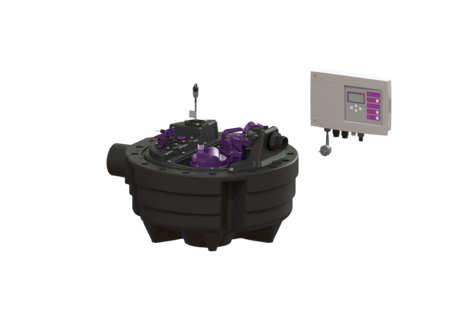

Lifting station Aqualift F Comp.

Duo, SPZ 1000, Free-standing set-up

28718
28718
PDF product data sheet

KESSEL Lifting station Aqualift F Comp. Duo, wastewater with sewage, free-standing installation, duo pump, with 2 submersible SPZ 1000 pumps

  • Suitable for complete basement drainage
  • High-performance macerator for space-saving and secure drainage
  • Maximum operating reliability due to intelligent control unit (Duo)
Item no. 28718
GTIN 4026092093412
Price group 20

    Lifting station Aqualift F Comp. Duo, SPZ 1000, Free-standing set-up
    The lifting station for faecal and faecal-free wastewater is equipped with one or two submersible pumps and a backflow preventer. The collection tank made of permanently resistant polymer (PE) has an enclosed pump tank. One-handed closures enable easy removal of the integrated components. Variant Type of system: duo pump Shut-off valve: without shut-off valve Retaining bracket for the lift protection: yes Sound absorption mat: yes Pump control: Control unit Backflow preventer: integrated Pressure pipe connection: horizontal General characteristics Colour: black Type of wastewater: with sewage Installation situation: free-standing installation Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected) Approval: Z-53.2-484 System type: Duo Dimensions Net weight: 34 kg Gross weight: 36,5 kg Groundwater resistant from lower edge of base section: 3000 mm Length: 670 mm Width: 580 mm Height: 395 mm Packaging dimension: length: 610 mm Packaging dimension: width: 610 mm Packaging dimension: height: 490 mm Tank/drain body Pressure pipe connection (DN): 32 Pressure pipe connection (OD): 40 mm Venting connection (DN): 70 Distance from centre of outlet pipe to tank bottom: 350 mm Distance pipe bottom inlet to tank bottom: 152 mm Distance from centre of inlet pipe to tank bottom: 207 mm Inlet nominal size (OD): 110 mm Inlet nominal size (DN): 100 mm Number of inlets: 1 Pumping volume: 20 l Tank volume: 40 l Pumping device Pump: SPZ 1000 Number of pumps: 2 Weight, pump: 10 kg Connection type: coded plug Rated current: 5,2 A Length of mains cable for pump: 5 m Protection class: I Insulation class: F Cos phi - power factor: 0,97 Protection class (pump): IP 68 Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 11,5 m³/h Max. pumping height: 10 m Speed: 2800 U/min Power P1: 1,2 kW Power P2: 0,69 kW Operating mode: S3 - 50 % Type of fuse required (electrical protection): Fuse protection through control unit 230 V Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Macerator Control Control unit: Comfort Control unit function: With alarm message Motor protection switch: yes Alarm sensor: optical probe Level measurement instrument: Immersion pipe Type of level measurement: pneumatic Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 230 V Connection type: coded plug Length of mains cable for control unit: 1,4 m Potential-free contact: optional GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Warning equipment version: acoustic and optical signal Rated current: 5,2 A
      Title Item no.
      Title Item no.
      Title Item no.
    27126 Adapter DN 50/70 27126 Vezi
    27602 Adapter DN 100/70 27602 Vezi
    28040 Pressure pipe set 5 m pressure hose, DA 40 mm 28040 Vezi
    28062 Pressure pipe set with 5 m pressure hose, DA 50 mm 28062 Vezi
    28086 Adapter for pressure pipe connection, DN 32, PE 28086 Vezi
    28792 TeleControl GSM modem for Comfort control units 230V/400V 28792 Vezi
    39005 Inlet socket DN 50, with seal, Threaded ring 39005 Vezi
    39007 Inlet socket DN 70, with seal, Threaded ring 39007 Vezi
    39100 Inlet socket DN 100, with seal, Threaded ring 39100 Vezi
    500101 Hole saw for DN 50/70/100 500101 Vezi
    850114 Seal for pipe penetration, DN 50 850114 Vezi
    850116 Seal for pipe penetration, DN 70 850116 Vezi
    850117 Seal for pipe penetration, DN 100 850117 Vezi
      Title Item no.
    28075 Knife replacement set KTP 1000 / SPZ 1000 28075 Vezi
    28706 Splash guard set for optical probe 28706 Vezi
    28732 Cover for pump opening 28732 Vezi
    28734 Connector Immersion pipe 28734 Vezi
    28739 Replacement pump KTP/SPZ 1000 230 V, with extended press. pipe connec. 28739 Vezi
    28744 Immersion pipe Aqualift F Compact, 5 m Schlauch 28744 Vezi
    28746 Control unit Comfort Duo, 230 V 28746 Vezi
    680018 One-handed closure for backflow preventer 680018 Vezi
    680034 Battery 9 V block 680034 Vezi
    680065 Pump connection for pumping stations, up to 12/2015 680065 Vezi
    680070 Turn fastener for pumps 680070 Vezi
    680076 Cover with seal 680076 Vezi
    680119 Bracket Pressure pipe connection 680119 Vezi
    680454 Seal set Aqualift F Compact Duo 680454 Vezi
    680487 Pump connection Aqualift F Compact, Duo, from 01/2016 680487 Vezi
    680676 Threaded connection for Aqualift F Compact 680676 Vezi
    80888 Spare part set, optical probe 5 m cable 80888 Vezi
    80892 Adapter Set optical probe 80892 Vezi
    • Type of wastewater (abwasserart_de): with sewage
    • Control unit (schaltgeraet): Comfort
    • Installation situation (einbausituation): free-standing installation
    • Pump (pumpe): SPZ 1000
    • (einbautiefe):
    • (ausfuehrung):
