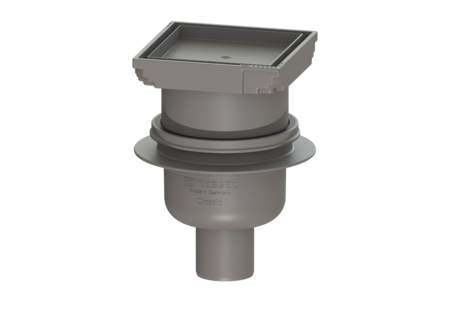

Bathroom drain, Classic

DN 50, vertical, tileable, K 3

40250.66
PDF product data sheet

KESSEL Bathroom drain, Classic, length 185 mm, nominal size (DN) 50, odour trap included, type of cover tileable cover plate, Cover tileable, socket vertical, locking lockable

  • Odour trap height: 50 mm
  • Lip seal fixed on the drain body
  • System 100 - modular design
Item no. 40250.66
GTIN 4026092029442
Price group 10

    Bathroom drain, Classic DN 50, vertical, tileable, K 3
    The Classic bathroom drain is suitable for indoor floor drainage. The drain made of ABS is equipped with a telescopic, height-adjustable upper section made of polymer, a removable odour trap as well as a secure, reliably installed seal. Variant Sealing water height: 50 mm Discharge rate (l/s) with 20 mm threshold: 0,8 General characteristics Standard: EN 1253-1 Nominal size (DN): 50 Outer diameter (OD): 50 mm Odour trap: included Dimensions Vertical adjustment: 25 - 90 mm Net weight: 0,44 kg Gross weight: 0,49 kg Cutout dimension, width: 180 mm Cutout dimension, length: 220 mm Type of height adjustability: vertically adjustable upper section Length: 185 mm Width: 185 mm Packaging dimension: length: 170 mm Packaging dimension: width: 170 mm Packaging dimension: height: 210 mm Tank/drain body Number of outlets: 1 Material of drain body: ABS Socket version: vertical Coverage features Type of cover: tileable cover plate Cover material: tileable Colour of cover: selectable Width of cover: 110 mm Length of cover: 110 mm Frame material: ABS Locking: lockable Load class: K 3 (EN 1253-1) Rim width: 110 mm Rim length: 110 mm Upper section material: ABS
      Title Item no.
      Title Item no.
      Title Item no.
    27118 Adapter DN 50/40 27118 Vezi
    27126 Adapter DN 50/70 27126 Vezi
    27146 Extension section System 100, H: 161 mm 27146 Vezi
    27168 Sludge bucket d: 110 mm 27168 Vezi
    27198 Extension section System 100, with pressure sealing flange 27198 Vezi
    27199 Extension section System 100, with glued flange 27199 Vezi
    43500 Odour trap Multistop, System 100 43500 Vezi
    43700 Hair filter Polymer, for System 100 bathroom drains 43700 Vezi
    47900 Intermediate section with system 100 glued flange 47900 Vezi
      Title Item no.
    47200 Odour trap Sealing water height 50 mm 47200 Vezi
    680224 Cover tileable, Lock & Lift, ABS 680224 Vezi
    • Nominal size (DN) (nennweite): 50
    • Material of drain body (material_grundkoerper): ABS
    • Frame material (rahmen_material): ABS
    • Upper section material (material_aufsatzstueck): ABS
    • Socket version (stutzen_ausfuehrung): vertical
    • Type of cover (abdeckungsart): tileable cover plate
    • (abdichtung_am_Grundkoerper):
    • (form_Aufsatzstueck):
