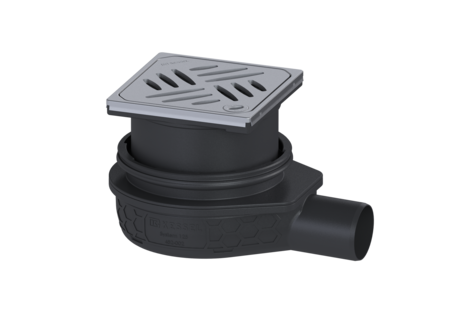

The Ultraflat 79 floor drain

DN 50, Des grating, L&L, Megastop

44700.66
44700.66

KESSEL The Ultraflat 79 floor drain, cover length 120 mm, socket lateral, nominal size (DN) 50, volume 10,98 dm³, type of cover Design cover, locking Lock & Lift, design cover Kessel, Sealing water height 10 mm, Backflow protection up to 0.1 bar

  • Low installation depth
  • Scientifically confirmed sound insulation effect
  • different design covers
Item no. 44700.66
GTIN 4026092081105
Price group 10

    The Ultraflat 79 floor drain DN 50, Des grating, L&L, Megastop
    The Ultraflat 79 floor drain is suitable for indoor floor drainage. The polymer drain is equipped with a removable odour trap in the upper section. Variant System: 125 Seepage opening: optional Backflow protection: up to 0.1 bar Sealing water height: 10 mm Discharge rate (l/s) with 10 mm threshold: 0,7 Discharge rate (l/s) with 20 mm threshold: 1,1 General characteristics Standard: EN 1253-1 Nominal size (DN): 50 Outer diameter (OD): 50 mm Odour trap: Megastop Dimensions Vertical adjustment: 95 - 145 mm Net weight: 0,87 kg Gross weight: 1,03 kg Type of height adjustability: vertically adjustable upper section Length: 227 mm Width: 163 mm Height: 79 mm Packaging dimension: length: 247 mm Packaging dimension: width: 247 mm Packaging dimension: height: 180 mm Tank/drain body Number of outlets: 1 Material of drain body: ABS Socket version: lateral Coverage features Type of cover: Design cover Cover material: Stainless steel 14301 Colour of cover: silver Width of cover: 120 mm Height of cover: 16 mm Length of cover: 120 mm Surface: ground Frame material: Stainless steel 14301 Locking: Lock & Lift Load class: L 15 (EN 1253-1) Grating design: Kessel Slip resistance class: R9 according to DIN 51130; C according to DIN 51097 Rim width: 132 mm Rim length: 132 mm Shape of upper section: square Upper section material: ABS
      Title Item no.
      Title Item no.
      Title Item no.
    27118 Adapter DN 50/40 27118 Vezi
    44702 Installation aid set for The Ultraflat 54 & 79 drain body 44702 Vezi
    44703 Clip flange The Ultraflat 79, Ecoguss, Practicus 44703 Vezi
    44704 Hair filter for The Ultraflat 54 & 79, System 125 44704 Vezi
    48403 Extension section H: 140 mm, with glued flange 48403 Vezi
    48404 Extension section H: 147 mm, with pressure sealing flange 48404 Vezi
    48500 Odour trap Multistop, System 125 48500 Vezi
    48550 Odour trap Megastop 48550 Vezi
    48900 Extension section H: 120 mm, with glued flange 48900 Vezi
    48987 Extension section H: 136 mm, without inlet 48987 Vezi
    48989 Extension section H: 136 mm, with side inlet DN 50 48989 Vezi
    680696 Odour trap for The Ultraflat 79 680696 Vezi
      Title Item no.
    44704 Hair filter for The Ultraflat 54 & 79, System 125 44704 Vezi
    48201 Upper section Kessel des cov, 304 SST, Lock&Lift, L15 48201 Vezi
    48550 Odour trap Megastop 48550 Vezi
    680225 Design cover Oval, Lock & Lift 680225 Vezi
    680226 Design cover KESSEL, Lock & Lift 680226 Vezi
    680235 Design cover Cross, Lock & Lift 680235 Vezi
    680236 Design cover Parade, Lock & Lift 680236 Vezi
    680237 Design cover Festival, Lock & Lift 680237 Vezi
    680238 Design cover Spot, Lock & Lift 680238 Vezi
    680239 Design cover Slot, Lock & Lift 680239 Vezi
    680240 Design cover Sticks, Lock & Lift 680240 Vezi
    680702 Release key for Lock & Lift 680702 Vezi
    • Nominal size (DN) (nennweite): 50
    • Material of drain body (material_grundkoerper): ABS
    • Cover material (abdeckung_material): Stainless steel 14301
    • Frame material (rahmen_material): Stainless steel 14301
    • Upper section material (material_aufsatzstueck): ABS
    • Socket version (stutzen_ausfuehrung): lateral
