Ecoguss project drain
DN 80, vert., Variofix, Slotted cover
KESSEL Ecoguss project drain, nominal size (DN) 80, socket vertical, type of cover Slotted cover, odour trap included, adjustable in three dimensions, flooring height max. 17 mm, locking screwed
- High-tech Ecoguss composite material
- Highest fire protection standards
- Scientifically confirmed sound protection effect
Item no. | 48483.51 |
---|---|
GTIN | 4026092034392 |
Price group | 40 |

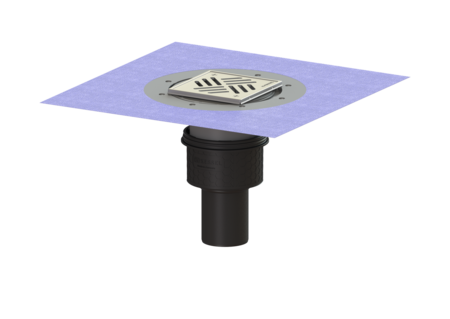

Ecoguss project drain DN 80, vert., Variofix, Slotted cover
The Ecoguss project drain with connection flange is used for point drainage and is equipped with a removable odour trap as well as a lip seal and a temporary protective cover. The recyclable composite material Ecoguss meets the highest noise protection requirements, is temperature-resistant, resistant to aggressive media, and has a permanently corrosion-free surface. It is also briefly flammable from 100 to 400 degrees Celsius. The outlet socket is suitable for connection to SML cast iron pipes. Separate equipotential bonding is not necessary. Variant System: 125 Waterproofing layer on the upper section: Enclosed sealing collar to be glued (bd) according to DIN 18534 Waterproofing layer on the drain body: Connection flange Sealing water height: 50 mm General characteristics Standard: EN 1253-1 Nominal size (DN): 80 Outer diameter (OD): 83 mm Approval: Z-19.53-2414,Z-19.17-1719 Odour trap: included Dimensions Net weight: 2,54 kg Gross weight: 2,82 kg Diameter: 135 mm Type of height adjustability: vertically adjustable upper section Length: 135 mm Width: 135 mm Packaging dimension: length: 490 mm Packaging dimension: width: 275 mm Packaging dimension: height: 495 mm Tank/drain body Number of outlets: 1 Material of drain body: Ecoguss Socket version: vertical Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Colour of cover: silver Width of cover: 138 mm Length of cover: 138 mm Min. flooring height: 10 mm Surface: Polished SST Frame material: Stainless steel 14301 Locking: screwed Load class: K 3 (EN 1253-1) Rim width: 150 mm Rim length: 150 mm Max. flooring height: 17 mm Upper section: adjustable in three dimensions Shape of upper section: square Upper section material: ABS
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. | ||
---|---|---|---|
Fire protection insert Fire-Kit 100, for DN 50, 70, 80 | 48099 | Vezi | |
Extension section H: 140 mm, with glued flange | 48403 | Vezi | |
Extension section H: 147 mm, with pressure sealing flange | 48404 | Vezi | |
Extension section H: 120 mm, with glued flange | 48900 | Vezi | |
Extension section H: 136 mm, without inlet | 48987 | Vezi | |
Extension section H: 136 mm, with side inlet DN 50 | 48989 | Vezi | |
Quick-Fit pipe penetration seal for core drillholes with fire protection | 48990 | Vezi | |
Quick-Fit pipe penetration seal for core drillholes, w/o fire protection | 48991 | Vezi |
Manuals | |
---|---|
CAD Data | |
Approval | |
Test Reports and Certificates |
- Nominal size (DN) (nennweite): 80
- Material of drain body (material_grundkoerper): Ecoguss
- Cover material (abdeckung_material): Stainless steel 14301
- Frame material (rahmen_material): Stainless steel 14301
- Upper section material (material_aufsatzstueck): ABS
- Socket version (stutzen_ausfuehrung): vertical
- Load class (belastungsklasse): K 3 (EN 1253-1)
- Odour trap (geruchsverschluss): included
- Waterproofing layer on the upper section (abdichtung_aufsatzstueck): Enclosed sealing collar to be glued (bd) according to DIN 18534
