Ecoguss project drain glu. flange

DN 70, horizontal, Design cover

48578.63
48578.63

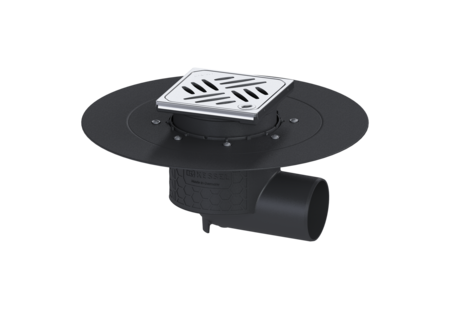

KESSEL Ecoguss project drain glu. flange, nominal size (DN) 70, socket lateral, drainage by Point drain, odour trap included, flooring height max. 16 mm, type of cover Design cover, vertically adjustable

  • High-tech Ecoguss composite material
  • Ecoguss, highest fire protection standards
  • Scientifically confirmed sound protection effect
Item no. 48578.63
GTIN 4026092054437
Price group 40

    Ecoguss project drain glu. flange DN 70, horizontal, Design cover
    The Ecoguss floor/roof drain is used for point drainage and is equipped with a glued flange, a removable odour trap, a lip seal and a temporary protective cover. The recyclable composite material Ecoguss fulfils the highest sound protection requirements, is resistant to aggressive media, temperature resistant and has a permanently corrosion-free surface. It can be exposed to flames of 100 up to 400 degrees Celsius for short periods. The glued flange with a flange width of 50 mm is suitable for connecting waterproofing layers in accordance with DIN 18534, for all waterproofing classes. The loose flange is used for clamping polymer and elastomer sealing sheets as well as for cold bitumen seals and is therefore only suitable for use with moisture barriers. The outlet socket is suitable for connection to SML cast iron pipes. Separate equipotential bonding is not necessary. Variant System: 125 Waterproofing layer on the upper section: Connection flange Waterproofing layer on the drain body: Adhesive flange (suitable for moisture barriers) Water exposure class in accordance to DIN 18534-1 (up to and including): W3-I Sealing water height: 50 mm General characteristics Standard: EN 1253-1 Nominal size (DN): 70 Outer diameter (OD): 78 mm Odour trap: included Dimensions Net weight: 1,83 kg Gross weight: 2,73 kg Diameter: 348 mm Type of height adjustability: vertically adjustable upper section Length: 348 mm Width: 348 mm Packaging dimension: length: 490 mm Packaging dimension: width: 275 mm Packaging dimension: height: 495 mm Tank/drain body Number of outlets: 1 Material of drain body: Ecoguss Socket version: lateral Coverage features Type of cover: Design cover Cover material: Stainless steel 14301 Colour of cover: silver Width of cover: 120 mm Length of cover: 120 mm Frame material: Stainless steel 14301 Locking: Lock & Lift Load class: L 15 (EN 1253-1) Grating design: Kessel Slip resistance class: R9 according to DIN 51130; C according to DIN 51097 Rim width: 132 mm Rim length: 132 mm Max. flooring height: 16 mm Upper section: vertically adjustable Upper section material: ABS
      Title Item no.
      Title Item no.
      Title Item no.
    48403 Extension section H: 140 mm, with glued flange 48403 Vezi
    48404 Extension section H: 147 mm, with pressure sealing flange 48404 Vezi
    48900 Extension section H: 120 mm, with glued flange 48900 Vezi
    48987 Extension section H: 136 mm, without inlet 48987 Vezi
    48989 Extension section H: 136 mm, with side inlet DN 50 48989 Vezi
      Title Item no.
    27169 Odour trap for Practicus, Ecoguss, Ferrofix 27169 Vezi
    48201 Upper section Kessel des cov, 304 SST, Lock&Lift, L15 48201 Vezi
    48410 Glued flange with mating flange, ABS, system 125 48410 Vezi
    48578 Ecoguss drain body glued flange, DN 70, Horizontal outlet 48578 Vezi
    680225 Design cover Oval, Lock & Lift 680225 Vezi
    680226 Design cover KESSEL, Lock & Lift 680226 Vezi
    680235 Design cover Cross, Lock & Lift 680235 Vezi
    680236 Design cover Parade, Lock & Lift 680236 Vezi
    680237 Design cover Festival, Lock & Lift 680237 Vezi
    680238 Design cover Spot, Lock & Lift 680238 Vezi
    680239 Design cover Slot, Lock & Lift 680239 Vezi
    680240 Design cover Sticks, Lock & Lift 680240 Vezi
    680702 Release key for Lock & Lift 680702 Vezi
    • Nominal size (DN) (nennweite): 70
    • Material of drain body (material_grundkoerper): Ecoguss
    • Cover material (abdeckung_material): Stainless steel 14301
    • Frame material (rahmen_material): Stainless steel 14301
    • Upper section material (material_aufsatzstueck): ABS
    • Socket version (stutzen_ausfuehrung): lateral
    • Load class (belastungsklasse): L 15 (EN 1253-1)
    • Odour trap (geruchsverschluss): included
    • Waterproofing layer on the upper section (abdichtung_aufsatzstueck): Connection flange
