Ecoguss project drain, press. fl.
DN 50, vert., Variofix, Slotted cover

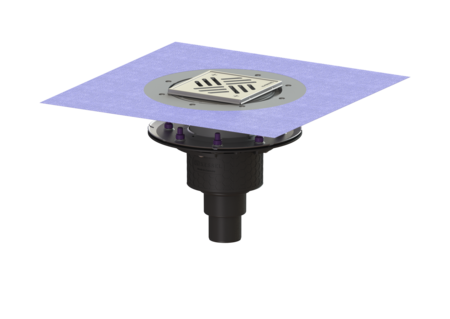

KESSEL Ecoguss project drain, press. fl., nominal size (DN) 50, cover length 138 mm, socket vertical, odour trap included, drainage by Point drain, flooring height max. 17 mm, type of cover Slotted cover, adjustable in three dimensions
- Scientifically confirmed sound protection effect
- Highest fire protection standards
Item no. | 48858.51 |
---|---|
GTIN | 4026092053195 |
Price group | 40 |
Ecoguss project drain, press. fl. DN 50, vert., Variofix, Slotted cover
The Ecoguss project drain is used for point drainage and is equipped with a pressure sealing flange as well as a removable odour trap, a lip seal and a temporary protective cover. The recyclable composite material Ecoguss meets the highest noise protection requirements, is temperature-resistant, resistant to aggressive media, and has a permanently corrosion-free surface. It is also briefly flammable from 100 to 400 degrees Celsius. The pressure sealing flange with bolts and screws made of stainless steel is used for the clamping or welding of bitumen and polymer bitumen sheets as well as for polymer and elastomer sealing sheets. Only the sealing sheets tested by the manufacturer may be used for watertight seals. The outlet socket is suitable for connection to SML cast iron pipes. Separate equipotential bonding is not necessary. Variant System: 125 Waterproofing layer on the upper section: Enclosed sealing collar to be glued (bd) according to DIN 18534 Waterproofing layer on the drain body: Press sealing flange (suitable for creating watertight seals) Sealing water height: 50 mm General characteristics Standard: EN 1253-1 Nominal size (DN): 50 Outer diameter (OD): 58 mm Approval: Z-19.53-2414,Z-19.17-1719 Odour trap: included Dimensions Net weight: 4,26 kg Gross weight: 5,25 kg Diameter: 273 mm Type of height adjustability: vertically adjustable upper section Length: 273 mm Width: 273 mm Packaging dimension: length: 588 mm Packaging dimension: width: 388 mm Packaging dimension: height: 400 mm Tank/drain body Number of outlets: 1 Material of drain body: Ecoguss Socket version: vertical Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Colour of cover: silver Width of cover: 138 mm Length of cover: 138 mm Min. flooring height: 10 mm Surface: Polished SST Frame material: Stainless steel 14301 Locking: screwed Load class: K 3 (EN 1253-1) Rim width: 150 mm Rim length: 150 mm Max. flooring height: 17 mm Upper section: adjustable in three dimensions Shape of upper section: square Upper section material: ABS
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. | ||
---|---|---|---|
Fire protection insert Fire-Kit 100, for DN 50, 70, 80 | 48099 | Vezi | |
Extension section H: 140 mm, with glued flange | 48403 | Vezi | |
Extension section H: 147 mm, with pressure sealing flange | 48404 | Vezi | |
Extension section H: 120 mm, with glued flange | 48900 | Vezi | |
Extension section H: 136 mm, without inlet | 48987 | Vezi | |
Extension section H: 136 mm, with side inlet DN 50 | 48989 | Vezi | |
Quick-Fit pipe penetration seal for core drillholes with fire protection | 48990 | Vezi | |
Quick-Fit pipe penetration seal for core drillholes, w/o fire protection | 48991 | Vezi |
Title | Item no. | ||
---|---|---|---|
Odour trap for Practicus, Ecoguss, Ferrofix | 27169 | Vezi | |
Ecoguss pressure sealing flange System 125, incl. fixing clips | 48407 | Vezi | |
Waterproofing membrane for joint sealing, liquid | 48651 | Vezi | |
Ecoguss drain body Press. fl., DN 50, Vertical outlet | 48858 | Vezi | |
Variofix upper section Slotted cover, 304 SST, K 3 | 48963 | Vezi |
Manuals | |
---|---|
CAD Data | |
Approval | |
Test Reports and Certificates |
- Nominal size (DN) (nennweite): 50
- Material of drain body (material_grundkoerper): Ecoguss
- Cover material (abdeckung_material): Stainless steel 14301
- Frame material (rahmen_material): Stainless steel 14301
- Upper section material (material_aufsatzstueck): ABS
- Socket version (stutzen_ausfuehrung): vertical
- Load class (belastungsklasse): K 3 (EN 1253-1)
- Odour trap (geruchsverschluss): included
- Waterproofing layer on the upper section (abdichtung_aufsatzstueck): Enclosed sealing collar to be glued (bd) according to DIN 18534
