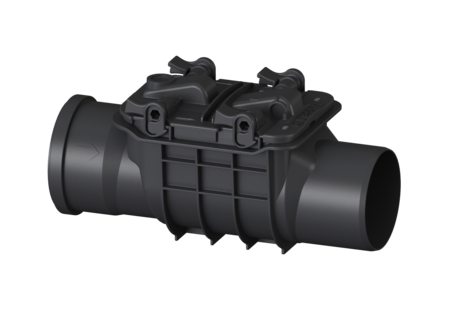

Staufix Basic clean out

DN 100

KESSEL Staufix Basic clean out, wastewater without sewage, exposed drainage pipe, outside diameter (OD) 110 mm, cover locking Quick-release closure

  • Simple conversion possible using conversion kits
  • Quick and toolless access for cleaning
  • Ideal for modernisation, can also be installed in existing pipes later
Item no. 70100
GTIN 4026092001905
Price group 10

    Staufix Basic clean out DN 100
    The clean out for faecal and faecal-free wastewater makes easy access to wastewater pipes possible for inspection and maintenance work. Thanks to the modular KESSEL system, existing systems can easily be converted to a Staufix Basic backwater valve with up to two flaps and emergency closure. General characteristics Colour: black Nominal size (DN): 100 Outer diameter (OD): 110 mm Type of wastewater: without sewage Installation situation: exposed drainage pipe Delivery state: installation-ready Dimensions Net weight: 0,92 kg Gross weight: 0,92 kg Vertical drop between inlet and outlet: 9 mm Length: 355 mm Width: 155 mm Height: 170 mm Packaging dimension: length: 360 mm Packaging dimension: width: 170 mm Packaging dimension: height: 175 mm Coverage features Cover locking: Quick-release closure
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    Cover with gasket Ø 100/110 70251 Vezi
    • Nominal size (DN) (nennweite): 100
    • Installation situation (einbausituation): exposed drainage pipe
    • Type of wastewater (abwasserart_de): without sewage
    • (rueckstauschutz):
    • (mechanische_rueckstauklappen):
    • (notverschluss):
