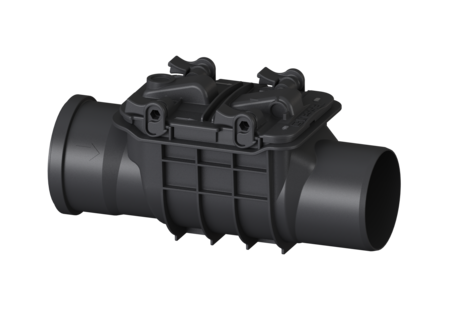

Backwater valve Staufix Basic

DN 100, Type 0, w/o emergency closure

KESSEL Backwater valve Staufix Basic, backwater protection Type 0, nominal size (DN) 100, wastewater Rainwater, exposed drainage pipe, a mechanical backwater flap, outside diameter (OD) 110 mm, cover locking Quick-release closure

  • Simple conversion possible using conversion kits
  • Fast and toolless maintenance and cleaning
  • Ideal for modernisation, can also be installed in existing pipes later
Item no. 71100
GTIN 4026092002315
Price group 10

Backwater valve Staufix Basic DN 100, Type 0, w/o emergency closure
The backwater valve for rainwater is equipped with a mechanical flap which closes automatically in the event of backwater. Thanks to the modular KESSEL system, existing systems can easily be supplemented by a second backwater flap or an emergency closure. Variant Mechanical backwater flaps: 1 General characteristics Colour: black Standard: EN 13564 Nominal size (DN): 100 Outer diameter (OD): 110 mm Type of wastewater: Rainwater Installation situation: exposed drainage pipe Delivery state: installation-ready Backwater protection: Type 0 Dimensions Net weight: 0,99 kg Gross weight: 1,18 kg Vertical drop between inlet and outlet: 9 mm Length: 355 mm Width: 155 mm Height: 170 mm Packaging dimension: length: 210 mm Packaging dimension: width: 164 mm Packaging dimension: height: 365 mm Coverage features Cover locking: Quick-release closure
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
Polymer backwater flap Ø 100/110 70231 Vezi
Backwater flap, DN100, f. Staufix/Contro 70233 Vezi
Cover with gasket Ø 100/110 70251 Vezi
Manuals
Test Reports and Certificates
Declaration of Performance
  • Nominal size (DN) (nennweite): 100
  • TÜV test mark (pruefzeichen): ID 1111242698
  • Installation situation (einbausituation): exposed drainage pipe
  • CE marking (ce_kennzeichnung): yes
  • Backwater protection (rueckstauschutz): Type 0
  • Mechanical backwater flaps (mechanische_rueckstauklappen): 1
  • (notverschluss):
