Ecolift XL backwater lifting st.

Duo, 2 motor-driven flaps, SPF 4500-S1

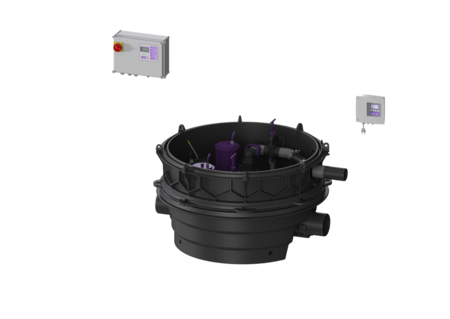

KESSEL Ecolift XL backwater lifting st., wastewater for wastewater with and without sewage, free-standing installation, duo pump, with 2 submersible SPF 4500 pumps, operating mode S1, alarm generator with optical probe, control unit Comfort Plus with redundancy

  • Wastewater drainage without interruption, even if a power failure occurs, as long as there is no backwater
  • low pump use
  • minimised noise emissions
Item no. 8741037
GTIN 4026092068540
Price group 60

Ecolift XL backwater lifting st. Duo, 2 motor-driven flaps, SPF 4500-S1

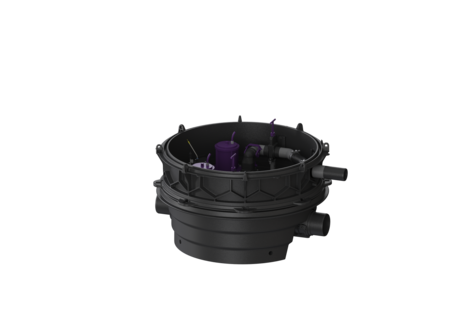

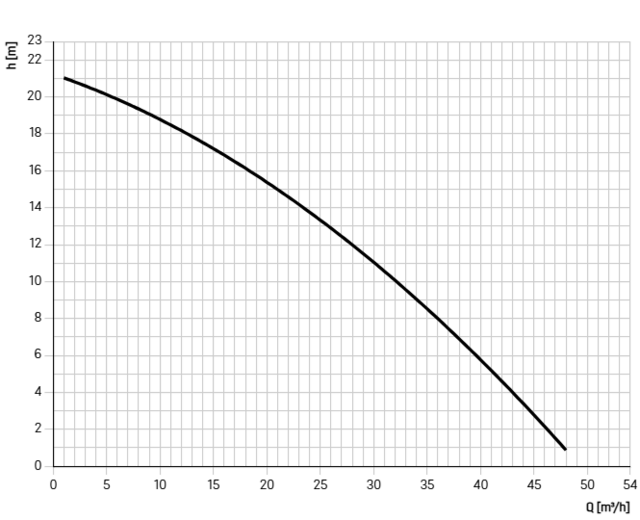

The backwater lifting station for faecal and non-faecal wastewater is equipped with two submersible pumps, two motor-driven closure systems and a backflow preventer. The collection tank made of permanently resistant polymer (PE) has an enclosed pump tank. Quick-release closures enable the integrated components to be removed easily. The pipe cross-section is normally open and the water drains to the sewer via natural fall. Backwater is detected by an optical probe, which causes the closure systems to close automatically and there is no longer free passage to the sewer. During the backwater phase, the water drains via a pressure pipe, which carries the wastewater into the sewer. The pressure pipe is a welded PE pipe; with pump SPF 4500, the pressure pipe must also be continued up to a pressure release chamber. The station is controlled by a user-friendly control unit, which is optionally integrated in the building management system via a potential-free contact, or alarm and collective fault messages can be output via a GSM interface. A redundant control unit also provides additional safety. The KESSEL modular system provides different upper sections and engineering chamber options as accessories. Variant Note on installation depth: Version for deeper installation Type of system: duo pump Shut-off valve: Shut-off valve made of polymer Passage seal for conduit pipe (DN): 100 Passage seal for ventilation pipe (DN): 70 Pump control: Control unit Backflow preventer: integrated Pressure pipe connection: horizontal Motor-driven backwater flaps: 2 General characteristics Colour: black Standard: ÖNORM B 2501 Type of wastewater: for wastewater with and without sewage Installation situation: free-standing installation Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected) Backwater protection: Type 6 Approval: Z-53.2-493 Dimensions Net weight: 156 kg Gross weight: 177,07 kg Groundwater resistant from lower edge of base section: 3000 mm Vertical drop between inlet and outlet: 15 mm Length: 1384 mm Width: 1200 mm Height: 695 mm Packaging dimension: length: 2000 mm Packaging dimension: width: 1300 mm Packaging dimension: height: 950 mm Tank/drain body Nominal pressure (PN): 10 Pressure pipe connection (DN): 80 Pressure pipe connection (OD): 90 mm Channel: continuous channel Venting connection (DN): 70 Distance pipe bottom outlet to tank bottom: 120 mm Distance pipe bottom inlet to tank bottom: 135 mm Number of outlets: 1 Outlet nominal size (DN): 150 mm Inlet nominal size (DN): 150 mm Number of inlets: 1 Clear width of tank (LW): 1000 mm Pumping volume: 20 l Tank volume: 65 l Pumping device Pump: SPF 4500 Number of pumps: 2 Weight, pump: 31 kg Connection type: Direct connection Rated current: 7,5 A Length of mains cable for pump: 10 m Protection class: I Insulation class: F Cos phi - power factor: 0,88 Protection class (pump): IP 68 (3m/48h) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 45 m³/h Max. pumping height: 21 m Speed: 2850 U/min Power P1: 4,2 kW Power P2: 3,5 kW Operating mode: S1 Type of fuse required (electrical protection): 3 x C 25 A Type of pump connection cable: H07RN-F 7G 1.5 mm² Impeller type: Multi-vane impeller Free passage: 40 mm Control Control unit: Comfort Plus with redundancy Motor protection switch: yes Standby power: 5 W Alarm sensor: optical probe Level measurement instrument: Immersion pipe Type of level measurement: pneumatic Protection class control unit: IP 54 Operating voltage: 400 V Connection type: Direct connection Potential-free contact: yes GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Rated current: 7,5 A
  Title Item no.
Chamber module LW 1000 floor slab Access LW 800, 411-660 mm, Class K 3 8740002 Vezi
Chamber module LW 1000 floor slab Access LW 800, 668-917 mm, Class K 3 8740003 Vezi
Chamber module LW 1000 floor slab Access LW 800, 396-645 mm, Class A 15 8740004 Vezi
Chamber module LW 1000 floor slab Access LW 800, 653-902 mm, Class L 15 8740005 Vezi
Chamber module LW 1000 floor slab Access LW 800, 661-910 mm, Class K 3 8740008 Vezi
Chamber module LW 1000 floor slab Access LW 800, 918-1167 mm, Class K 3 8740009 Vezi
Chamber module LW 1000 floor slab Access LW 800, 646-895 mm, Class A 15 8740010 Vezi
Chamber module LW 1000 floor slab Access LW 800, 903-1152 mm, Class L 15 8740011 Vezi
Chamber module LW 1000 floor slab Access LW 800, 911-1160 mm, Class K 3 8740014 Vezi
Chamber module LW 1000 floor slab Access LW 800, 1168-1417 mm, Class K 3 8740015 Vezi
Chamber module LW 1000 floor slab Access LW 800, 896-1145 mm, Class A 15 8740016 Vezi
Chamber module LW 1000 floor slab Access LW 800, 1153-1402 mm, Class L 15 8740017 Vezi
Chamber module LW 1000 floor slab Access LW 600, 1130-1379 mm, Class A/B 8740018 Vezi
Chamber module LW 1000 floor slab Access LW 600, 1130-1379 mm, Class D 8740019 Vezi
Chamber module LW 1000 floor slab Access LW 800, 1161-1410 mm, Class K 3 8740020 Vezi
Chamber module LW 1000 floor slab Access LW 800, 1418-1667 mm, Class K 3 8740021 Vezi
Chamber module LW 1000 floor slab Access LW 800, 1146-1395 mm, Class A 15 8740022 Vezi
Chamber module LW 1000 floor slab Access LW 800, 1403-1652 mm, Class L 15 8740023 Vezi
Chamber module LW 1000 floor slab Access LW 600, 1380-1629 mm, Class A/B 8740024 Vezi
Chamber module LW 1000 floor slab Access LW 600, 1380-1629 mm, Class D 8740025 Vezi
Chamber module LW 1000 floor slab Access LW 800, 1411-1660 mm, Class K 3 8740026 Vezi
Chamber module LW 1000 floor slab Access LW 800, 1668-1917 mm, Class K 3 8740027 Vezi
Chamber module LW 1000 floor slab Access LW 800, 1396-1645 mm, Class A 15 8740028 Vezi
Chamber module LW 1000 floor slab Access LW 800, 1653-1902 mm, Class L 15 8740029 Vezi
Chamber module LW 1000 floor slab Access LW 600, 1630-1879 mm, Class A/B 8740030 Vezi
Chamber module LW 1000 floor slab Access LW 600, 1630-1879 mm, Class D 8740031 Vezi
Chamber module LW 1000 floor slab Access LW 800, 1661-1910 mm, Class K 3 8740032 Vezi
Chamber module LW 1000 floor slab Access LW 800, 1646-1895 mm, Class A 15 8740034 Vezi
Chamber module LW 1000 floor slab Access LW 600, 1880-2129 mm, Class A/B 8740036 Vezi
Chamber module LW 1000 floor slab Access LW 600, 1880-2129 mm, Class D 8740037 Vezi
Chamber module LW 1000 floor slab Access LW 800, 1911-2160 mm, Class K 3 8740038 Vezi
Chamber module LW 1000 floor slab Access LW 800, 1896-2145 mm, Class A 15 8740040 Vezi
Chamber module LW 1000 floor slab Access LW 600, 2130-2379 mm, Class A/B 8740042 Vezi
Chamber module LW 1000 floor slab Access LW 600, 2130-2379 mm, Class D 8740043 Vezi
Chamber module LW 1000 floor slab Access LW 800, 2161-2410 mm, Class K 3 8740044 Vezi
Chamber module LW 1000 floor slab Access LW 800, 2146-2395 mm, Class A 15 8740046 Vezi
Chamber module LW 1000 floor slab Access LW 600, 2380-2629 mm, Class A/B 8740048 Vezi
Chamber module LW 1000 floor slab Access LW 600, 2380-2629 mm, Class D 8740049 Vezi
Chamber module LW 1000 floor slab Access LW 800, 2411-2660 mm, Class K 3 8740050 Vezi
Chamber module LW 1000 floor slab Access LW 800, 2396-2645 mm, Class A 15 8740052 Vezi
Chamber module LW 1000 floor slab Access LW 600, 2630-2879 mm, Class A/B 8740054 Vezi
Chamber module LW 1000 floor slab Access LW 600, 2630-2879 mm, Class D 8740055 Vezi
Chamber module LW 1000 floor slab Access LW 800, 2661-2910 mm, Class K 3 8740056 Vezi
Chamber module LW 1000 floor slab Access LW 800, 2646-2895 mm, Class A 15 8740058 Vezi
Chamber module LW 1000 floor slab Access LW 600, 2880-3129 mm, Class A/B 8740060 Vezi
Chamber module LW 1000 floor slab Access LW 600, 2880-3129 mm, Class D 8740061 Vezi
Chamber module LW 1000 floor slab Access LW 800, 2911-3160 mm, Class K 3 8740062 Vezi
Chamber module LW 1000 floor slab Access LW 800, 2896-3145 mm, Class A 15 8740064 Vezi
Chamber module LW 1000 floor slab Access LW 800, 375-624 mm, Class K 3 8740122 Vezi
Chamber module LW 1000 floor slab Access LW 800, 625-874 mm, Class K 3 8740123 Vezi
Chamber module LW 1000 floor slab Access LW 800, 875-1124 mm, Class K 3 8740124 Vezi
Chamber module LW 1000 floor slab Access LW 800, 1125-1374 mm, Class K 3 8740125 Vezi
Chamber module LW 1000 floor slab Access LW 800, 1375-1624 mm, Class K 3 8740126 Vezi
Chamber module LW 1000 floor slab Access LW 800, 1625-1874 mm, Class K 3 8740127 Vezi
Chamber module LW 1000 floor slab Access LW 800, 1875-2124 mm, Class K 3 8740128 Vezi
Chamber module LW 1000 floor slab Access LW 800, 2125-2374 mm, Class K 3 8740129 Vezi
Chamber module LW 1000 floor slab Access LW 800, 2375-2624 mm, Class K 3 8740130 Vezi
Chamber module LW 1000 floor slab Access LW 800, 2625-2874 mm, Class K 3 8740131 Vezi
Chamber module LW 1000 floor slab Access LW 800, 2875-3124 mm, Class K 3 8740132 Vezi
Chamber module LW 1000 floor slab Access LW 800, 620-869 mm, Class B 8740141 Vezi
Chamber module LW 1000 floor slab Access LW 800, 870-1119 mm, Class B 8740142 Vezi
Chamber module LW 1000 floor slab Access LW 800, 1120-1369 mm, Class B 8740143 Vezi
Chamber module LW 1000 floor slab Access LW 800, 620-869 mm, Class D 8740158 Vezi
Chamber module LW 1000 floor slab Access LW 800, 870-1119 mm, Class D 8740159 Vezi
Chamber module LW 1000 floor slab Access LW 800, 1120-1369 mm, Class D 8740160 Vezi
  Title Item no.
  Title Item no.
Remote signal generator 20 m cable, 2x0.75 q 20162 Vezi
Compressor set for air bubbling 28048 Vezi
TeleControl GSM modem for Comfort control units 230V/400V 28792 Vezi
Intermediate section 250 mm, for chamber module LW 1000 680370 Vezi
Intermediate section 500 mm, for chamber module LW 1000 680371 Vezi
Cable accessories 80889 Vezi
Cable accessories Extension for motor 80890 Vezi
Cable accessories Extension for pump 80891 Vezi
Installation set Thermostat, Hygrostat 97713 Vezi
Outdoor Cabinet W: 590 mm,for installation control units 97714 Vezi
Warning beacon for outdoor cabinet 97715 Vezi
Outdoor Cabinet W: 460 mm, for installation control unit 97716 Vezi
Outdoor cabinet W: 785 mm, for control unit installation 97723 Vezi
Outdoor Cabinet 97724 Vezi
  Title Item no.
Splash guard set for optical probe 28706 Vezi
Contr.unit Comfort Plus 400V(2x)6,3-10A 28788 Vezi
Control unit Ecolift XL redundancy 28791 Vezi
Battery 9 V block 680034 Vezi
Seal for SPF 1400 - SPF 4500 680052 Vezi
Pressure hose Sold by the metre, 6x4 mm 100 680071 Vezi
Flap holder for motor-driven and mechanical flap 680101 Vezi
Height adapter for Ecolift XL optical probe 680379 Vezi
One-handed closure DN 63 680380 Vezi
Backflow preventer left, with non-return flap 680381 Vezi
Backflow preventer right, with non-return flap 680382 Vezi
Pressure pipe with shut-off valve Left-hand version 680383 Vezi
Pressure pipe with shut-off valve Right-hand version 680384 Vezi
Pressure hose Ecolift XL 680385 Vezi
Valve key for shut-off valve DN 63 680386 Vezi
Ecolift XL lockable cover Inlet side 680390 Vezi
Ecolift XL lockable cover Outlet side 680391 Vezi
Support rib for shut-off valve, straight support 680397 Vezi
Pump flange Ecolift XL, incl. seal 680398 Vezi
Pump plate Ecolift XL 680399 Vezi
Seal set Ecolift XL 680418 Vezi
Pump drive SPF 4500 400 V, S1, 10 m cable 680443 Vezi
Drive motor for clamping on, 10 m cable 680452 Vezi
Spare part set, optical probe 10 m cable 680455 Vezi
Immersion pipe for Ecolift XL, 180 mm 680827 Vezi
Motor-driven backwater flap Premium 80038 Vezi
Slide-in flap housing for motorised flap with flap holder 80039 Vezi
  • Type of wastewater (abwasserart_de): for wastewater with and without sewage
  • Control unit (schaltgeraet): Comfort Plus with redundancy
  • TÜV test mark (pruefzeichen): ID 1111241794
  • Installation situation (einbausituation): free-standing installation
  • (nennweite):
  • Pump (pumpe): SPF 4500
  • Operating voltage (betriebsspannung): 400  V
