Grease separator EasyClean free

NS 7, Mix, Inspection window

93007.31/DS
PDF product data sheet

KESSEL Grease separator EasyClean free, disposal Mix, nominal size 7,00, control unit yes, free-standing installation, type of disposal manual cleaning system, no, yes

  • Direction of flow can be changed thanks to self-sealing interchangeable hubs (NS 2- NS 10)
  • Simple control
  • Low-maintenance operation
Item no. 93007.31/DS
GTIN 4026092068885
Price group 60

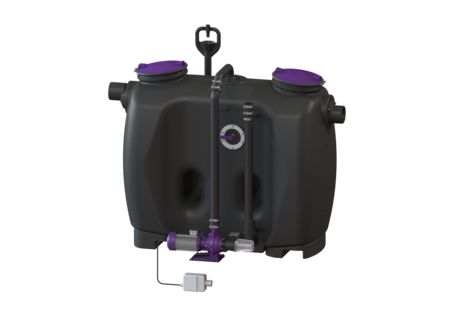

Grease separator EasyClean free NS 7, Mix, Inspection window
The separator for greasy wastewater is suitable for free-standing set-up in frost-protected rooms and comes without metallic components in the tank. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap and has a tapered base for fast and clean disposal. Two odour-tight covers with quick-release closures make easy access possible for cleaning and maintenance work. The innovative Shredder-Mix-System with integrated macerating system is responsible for homogenising and circulating the tank contents. Cleaning is carried out by an exterior pump which can be disconnected from the tank by a shut-off valve. After disposal, a maximum of 3 litres residual sludge volume is left in the tank. A direct disposal pipe socket is available for odour-neutral manual disposal. 20 year polyethylene warranty. Variant Shut-off valve: yes Disposal variant: Mix Shredder-Mix-System: yes Sludge bucket: yes Nominal size (NS): 7,00 SonicControl: no Disposal system: Disposal connection Refill inlet in accordance with DIN 1988: yes Type of disposal: manual cleaning system Water supply: 1 screw-type valve 1" Load-bearing capacity (DIN 19901): F3 General characteristics Material: PE Standard: EN 1825: 2004 Installation situation: free-standing installation Delivery state: Installation-ready (electrical components, connection parts must be connected on site) Scope of delivery: Storz-B coupling R 2 1/2" for disposal vehicle connection Dimensions Net weight: 194 kg Gross weight: 224 kg Set-up area, length: 2147 mm Set-up area, width: 1108 mm Set-up area, height: 1892 mm Required access area, length: 1910 mm Required access area, width: 940 mm Required access area, height: 1678 mm Packaging dimension: length: 2200 mm Packaging dimension: width: 1150 mm Packaging dimension: height: 1700 mm Tank/drain body Nominal pressure (PN): 10 Pressure pipe connection (DN): 65 Pressure pipe connection (OD): 75 mm Distance pipe bottom outlet to tank bottom: 1185 mm Distance pipe bottom inlet to tank bottom: 1255 mm Outlet nominal size (OD): 160 mm Outlet nominal size (DN): 150 mm Inlet nominal size (OD): 160 mm Inlet nominal size (DN): 150 mm Connection inlet/outlet sockets: PE-HD pipes in accordance with DIN 19537, HT pipes in accordance with DIN 19560, PP or AS Servicing opening: 420 mm Coverage features Type of cover: Cover Cover material: Polymer Colour of cover: violet Locking: Quick-release closure Tightness: odour-tight Wastewater contents Separator contents: 650 l Total volume: 1350 l Contents of sludge trap: 700 l Storage quantity of grease: 280 l Pumping device Pump: SPF 300 KE 2.0 Number of pumps: 1 Weight, pump: 44 kg Connection type: Direct connection Rated current: 6,2 A Protection class: I Insulation class: F Cos phi - power factor: 0,87 Protection class (pump): IP 55 Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 60 m³/h Max. pumping height: 17 m Speed: 2850 U/min Power P1: 3,6 kW Power P2: 3 kW Operating mode: S2 - 30 min. Type of pump connection cable: H07RN-F 7G 1.5 mm² Impeller type: Radial impeller with macerating system Length of mains cable for pump: 5 m Control Control unit: yes Type of fuse required (RCD): 30 mA Mains frequency: 50 Hz Operating voltage: 400 V Connection type: Direct connection
  Title Item no.
  Title Item no.
  Title Item no.
915870 Sampling system DN 100/150, Vertical outlet 915870 Vezi
915871 Sampling system DN 100/150, Horizontal outlet 915871 Vezi
917413 Access panel for mounting on-wall 917413 Vezi
917414 Access panel for in-wall installation 917414 Vezi
917821 Layer thickness measuring device SonicControl, for grease separators 917821 Vezi
917871 Cable extension 10 m, for SonicControl grease separator 917871 Vezi
917872 Cable extension 20 m, for SonicControl grease separator 917872 Vezi
917873 Cable extension 30 m, for SonicControl grease separator 917873 Vezi
  Title Item no.
680003 Seal DN 150 680003 Vezi
680126 Hose clamp d: 110 mm 680126 Vezi
680128 Seal DN 200 680128 Vezi
680164 Screw 10x3, A2 680164 Vezi
680328 Motor protection plug CEE, 4 - 6.3 A 680328 Vezi
680329 Shut-off valve DN 100, polymer, horizontal 680329 Vezi
680434 Flexible coupling DN 100, L: 100 mm 680434 Vezi
680436 Inlet socket for grease separator NS 7-10 680436 Vezi
680438 Outlet socket for grease separator NS 7-10 680438 Vezi
680439 Inlet/outlet structure for grease separator NS 2-10 680439 Vezi
680555 Flexible coupling with hose clamps, DN 75, L: 100 mm 680555 Vezi
913109 Inspection window for EasyClean grease separator 913109 Vezi
916904 Cover d: 420 mm, from 04/2004 916904 Vezi
917004 Clamp fastener for cover 420 mm, up to 04/2004 917004 Vezi
917204 Seal for cover d: 420 mm 917204 Vezi
917854 Radial impeller with cutting plate and whirler, 3.0 kW 917854 Vezi
917855 Cutting plate for pump 3,0 kW 917855 Vezi
917856 Replacement pump SPF 300 KE 2.0 Homogeniser, 3,0 kW 917856 Vezi
  • Material (material): PE
  • CE marking (ce_kennzeichnung): yes
  • Cover material (abdeckung_material): Polymer
  • Disposal system (entsorgungseinrichtung): Disposal connection
  • Installation situation (einbausituation): free-standing installation
  • Shredder-Mix-System (schredder_mix_system): yes
  • Nominal size (NS) (nenngroesse): 7
  • Refill inlet in accordance with DIN 1988 (fuelleinrichtung): yes
  • Set-up area, width (aufstellflaeche_breite): 1.108  mm
  • Set-up area, length (aufstellflaeche_laenge): 2.147  mm
  • Control unit (schaltgeraet): yes
