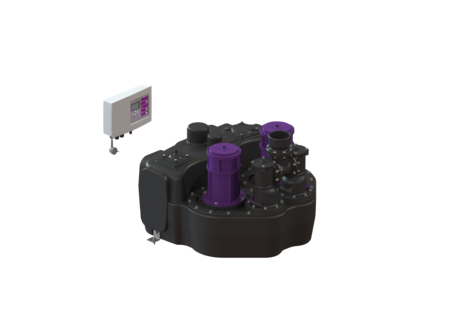

Lifting station Aqualift F Duo

Comfort, SPF 1400-S3

28628-C
28628-C
PDF product data sheet

KESSEL Lifting station Aqualift F Duo, wastewater with sewage, pumping height 7 m, control unit Comfort, height 539 mm, with 2 submersible SPF 1400-S3 pumps, pressure pipe connection vertical, shut-off valve without shut-off valve

  • Different performance classes available
  • Pressure sensor for reliable pneumatic level measurement
  • Control unit with self-diagnosis system
Item no. 28628-C
GTIN 4026092058497
Price group 20

Lifting station Aqualift F Duo Comfort, SPF 1400-S3
The lifting station for faecal and faecal-free wastewater is equipped with two submersible pumps and a backflow preventer. The collection tank made of permanently resistant polymer (PE) offers universal connection options and has a screwed access cover. Variant Type of system: duo pump Shut-off valve: without shut-off valve Retaining bracket for the lift protection: yes Sound absorption mat: yes Pump control: Control unit Backflow preventer: integrated Pressure pipe connection: vertical General characteristics Colour: black Standard: EN 12050-1 Type of wastewater: with sewage Installation situation: free-standing installation Delivery state: Installation-ready (electrical components, connection parts must be connected on site) Dimensions Net weight: 108 kg Gross weight: 108 kg Length: 773 mm Width: 780 mm Height: 539 mm Packaging dimension: length: 855 mm Packaging dimension: width: 775 mm Packaging dimension: height: 640 mm Tank/drain body Pressure pipe connection (DN): 100 Pressure pipe connection (OD): 110 mm Connection for manual diaphragm pump (DN): 32 Venting connection (DN): 70 Distance pipe bottom inlet to tank bottom: 245 mm Distance from centre of inlet pipe to tank bottom: 300 mm Inlet max. scoring (DN): 150 mm Inlet nominal size (OD): 110 mm Inlet nominal size (DN): 100 mm Number of inlets: 2 Pumping volume: 50 l Tank volume: 120 l Pumping device Pump: SPF 1400-S3 Number of pumps: 2 Weight, pump: 25 kg Connection type: coded plug Rated current: 7,3 A Protection class: I Insulation class: F Cos phi - power factor: 0,98 Protection class (pump): IP 68 (3m/48h) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 38 m³/h Max. pumping height: 7 m Speed: 1370 U/min Power P1: 1,6 kW Power P2: 1,1 kW Operating mode: S3 - 50 % Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Free passage: 40 mm Length of mains cable for pump: 5 m Control Control unit: Comfort Alarm sensor: Immersion pipe Level measurement instrument: Immersion pipe with pressure monitor Type of level measurement: pneumatic Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 230 V Connection type: coded plug Length of mains cable for control unit: 1,4 m Potential-free contact: optional GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes
  Title Item no.
  Title Item no.
  Title Item no.
20162 Remote signal generator 20 m cable, 2x0.75 q 20162 Vezi
28015 Retrofit kit Alarm float switch, Aqualift F and F Duo 28015 Vezi
28048 Compressor set for air bubbling 28048 Vezi
28662 Flexible coupling DN 80, L: 200 mm 28662 Vezi
28663 Flexible coupling DN 100, for pressure pipes made of PE 28663 Vezi
28682 Shut-off valve DN 80, Polymer, horizontal 28682 Vezi
28683 Shut-off valve DN 100, Polymer, horizontal 28683 Vezi
28698 Shut-off valve DN 100, Polymer 28698 Vezi
28699 Shut-off valve DN 150, Polymer 28699 Vezi
28712 Flange joint DN 100, for polymer fittings 28712 Vezi
28713 Flange joint DN 80, for polymer fittings 28713 Vezi
28714 Flange adapter DN 80, for polymer fitting 28714 Vezi
28715 Shut-off valve DN 80, Polymer, vertical 28715 Vezi
28716 Shut-off valve DN 80, Polymer, vertical with flange 28716 Vezi
28792 TeleControl GSM modem for Comfort control units 230V/400V 28792 Vezi
80072 Potential-free contact Additio. circuit board for control units 80072 Vezi
  Title Item no.
28029 Pump drive SPF 1400 230 V, S3, 5 m cable, with capacitor 28029 Vezi
28046 Pressure monitor Duo, with seal, up to 12/2009 28046 Vezi
28051 Replacement set pump flange with screw set, flange gasket 28051 Vezi
28608 Seal set DN 70, DN 100 28608 Vezi
28663 Flexible coupling DN 100, for pressure pipes made of PE 28663 Vezi
28677 Flap housing with pressure hose, DN 100 28677 Vezi
28746 Control unit Comfort Duo, 230 V 28746 Vezi
680034 Battery 9 V block 680034 Vezi
680044 Cleaning cover screwed, 160x140 mm 680044 Vezi
680045 Seal Pump flange 680045 Vezi
680046 Attachment bracket with screws (2 ea.) 680046 Vezi
Screw set galvanised, 14 each 680047 Vezi
680049 Immersion pipe pressure monitor, Duo, 10m,up to 12/2009 680049 Vezi
680050 Pump flange SPF 1400 - SPF 4500 680050 Vezi
680052 Seal for SPF 1400 - SPF 4500 680052 Vezi
680053 Flap set Rolling ring, flap, flap holder 680053 Vezi
680056 Immersion pipe Duo, 5 m, from 01/2010 680056 Vezi
680061 Flap housing for Duo systems, without shut-off valve 680061 Vezi
680643 Impeller SPF 1400/1500, Aqualift lifting stations 680643 Vezi
  • CE marking (ce_kennzeichnung): yes
  • Type of wastewater (abwasserart_de): with sewage
  • Control unit (schaltgeraet): Comfort
  • TÜV test mark (pruefzeichen): ID 1111241940
  • Installation situation (einbausituation): free-standing installation
  • Pump (pumpe): SPF 1400-S3
  • Impeller type (laufrad_typ): Multi-vane impeller
  • Shut-off valve (absperreinrichtung): without shut-off valve
