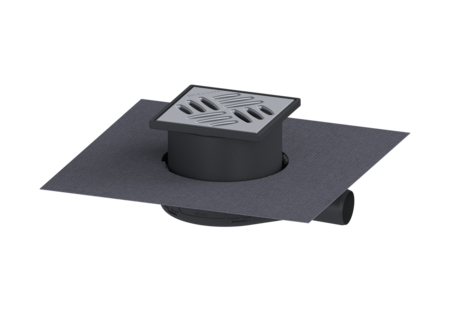

The Ultraflat 54 floor drain

DN 40, WaD, Slotted grating

KESSEL The Ultraflat 54 floor drain, cover length 120 mm, nominal size (DN) 40, type of cover Slotted cover, locking unlocked, odour trap included, waterproofing layer drain body by Factory-fitted sealing collar (WaD) according to DIN 18534, load class K 3

  • including removable odour trap in the upper section
  • Low installation depth
  • Scientifically confirmed sound insulation effect
Item no. 44740.20M
GTIN 4026092080757
Price group 10

    The Ultraflat 54 floor drain DN 40, WaD, Slotted grating
    The Ultraflat 54 floor drain is suitable for indoor floor drainage. The polymer drain is equipped with a removable odour trap in the upper section. Variant System: 125 Seepage opening: optional Waterproofing layer on the drain body: Factory-fitted sealing collar (WaD) according to DIN 18534 Water exposure class in accordance to DIN 18534-1 (up to and including): W3-I Sealing water height: 22 mm General characteristics Nominal size (DN): 40 Outer diameter (OD): 40 mm Dimensions Vertical adjustment: 63 - 116 mm Net weight: 0,69 kg Gross weight: 0,77 kg Type of height adjustability: vertically adjustable upper section Length: 246 mm Width: 200 mm Height: 54 mm Packaging dimension: length: 315 mm Packaging dimension: width: 315 mm Packaging dimension: height: 117,9 mm Tank/drain body Number of outlets: 1 Material of drain body: ABS Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Colour of cover: silver Width of cover: 120 mm Height of cover: 16 mm Length of cover: 120 mm Frame material: ABS Locking: unlocked Load class: K 3 (EN 1253-1) Slip resistance class: R9 according to DIN 51130; C according to DIN 51097 Rim width: 130 mm Rim length: 130 mm Shape of upper section: square Upper section material: ABS Odour trap: included
      Title Item no.
      Title Item no.
      Title Item no.
    Installation aid set for The Ultraflat 54 & 79 drain body 44702 Vezi
    Hair filter for The Ultraflat 54 & 79, System 125 44704 Vezi
    Odour trap Multistop, System 125 48500 Vezi
    Odour trap Megastop 48550 Vezi
    Extension section H: 136 mm, without inlet 48987 Vezi
    Extension section H: 136 mm, with side inlet DN 50 48989 Vezi
      Title Item no.
    The Ultraflat 54 drain body DN40, WaD, Odour trap 22 mm 44740M Vezi
    Upper section Slot cover, 304 SST, 130 x 130 mm, K3 48165 Vezi
    Odour trap for The Ultraflat 54 680695 Vezi
    • Material of drain body (material_grundkoerper): ABS
    • Cover material (abdeckung_material): Stainless steel 14301
    • Frame material (rahmen_material): ABS
    • Upper section material (material_aufsatzstueck): ABS
    • Nominal size (DN) (nennweite): 40
    • Type of cover (abdeckungsart): Slotted cover
    • Load class (belastungsklasse): K 3 (EN 1253-1)
    • Locking (verriegelung): unlocked
    • Odour trap (geruchsverschluss): included
