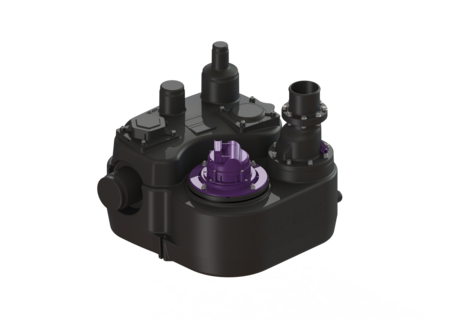

Lifting station Aqualift L

Mono, SPF 1300, 230 V

28798
28798
PDF product data sheet

KESSEL Lifting station Aqualift L Mono, wastewater for wastewater with and without sewage, control unit Connect control unit function With alarm message, Single unit, with a submersible SPF 1300 pump

  • Variable connection options for inlets
  • Integrated backflow preventer
  • Powerful pump with multi-vane vortex impeller for maximum reliability
Item no. 28798
GTIN 4026092074756
Price group 20

Lifting station Aqualift L Mono, SPF 1300, 230 V
The lifting station for faecal and faecal-free wastewater is equipped with one or two submersible pumps and a backflow preventer. The collection tank made of permanently resistant polymer (PE) has a closed pump tank with a screwed-on access cover. The station is controlled by a user-friendly control unit. Variant Type of system: Single unit Installation: Dry installation Pump control: Control unit Backflow preventer: integrated General characteristics Colour: black Standard: EN 12050-1 Type of wastewater: for wastewater with and without sewage Installation situation: free-standing installation Delivery state: installation-ready System type: Mono Dimensions Net weight: 22 kg Gross weight: 24,3 kg Length: 565 mm Width: 624 mm Height: 483 mm Packaging dimension: length: 610 mm Packaging dimension: width: 610 mm Packaging dimension: height: 490 mm Tank/drain body Pressure pipe connection (DN): 80 Pressure pipe connection (OD): 90 mm Connection for manual diaphragm pump (DN): 32 Venting connection (DN): 70 Inlet nominal size (DN): 100 mm Number of inlets: 3 Pumping volume: 20 l Tank volume: 50 l Socket version: including spigot and socket Pumping device Pump: SPF 1300 Number of pumps: 1 Weight, pump: 11 kg Operating voltage: 230 V Protection class: I Insulation class: F Protection class (pump): IP 68 (3m/48h) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 32 m³/h Max. pumping height: 9,2 m Speed: 2600 U/min Power P1: 1,5 kW Power P2: 0,9 kW Operating mode: S3 - 15 % Type of fuse required (electrical protection): C 10 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Free passage: 40 mm Length of mains cable for pump: 5 m Rated current: 6,4 A Control Control unit: Connect Control unit function: With alarm message Motor protection switch: yes Alarm sensor: Float switch Type of level measurement: mechanical Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 230 V Length of mains cable for control unit: 5 m Potential-free contact: optional GSM interface: no USB interface: no Log book function: no Multi-line display: no Battery buffering: yes Self-diagnosis system (SDS): yes Warning equipment version: acoustic and optical signal Type of fuse required (electrical protection): C 10 A
  Title Item no.
  Title Item no.
  Title Item no.
28660 Flexible coupling DN 32, L: 200 mm 28660 Vezi
28661 Flexible coupling DN 70, L: 200 mm 28661 Vezi
28662 Flexible coupling DN 80, L: 200 mm 28662 Vezi
28663 Flexible coupling DN 100, for pressure pipes made of PE 28663 Vezi
28680 Manual diaphragm pump for manual pumping of wastewater 28680 Vezi
28682 Shut-off valve DN 80, Polymer, horizontal 28682 Vezi
28683 Shut-off valve DN 100, Polymer, horizontal 28683 Vezi
28698 Shut-off valve DN 100, Polymer 28698 Vezi
28699 Shut-off valve DN 150, Polymer 28699 Vezi
28712 Flange joint DN 100, for polymer fittings 28712 Vezi
28715 Shut-off valve DN 80, Polymer, vertical 28715 Vezi
500100 Hole saw for DN 100/125/150 500100 Vezi
500101 Hole saw for DN 50/70/100 500101 Vezi
80074 Potential-free contact Extension set for control units Basic 80074 Vezi
850114 Seal for pipe penetration, DN 50 850114 Vezi
850116 Seal for pipe penetration, DN 70 850116 Vezi
850117 Seal for pipe penetration, DN 100 850117 Vezi
850118 Seal for pipe penetration, DN 125 850118 Vezi
850119 Seal for pipe penetration, DN 150 850119 Vezi
  Title Item no.
28662 Flexible coupling DN 80, L: 200 mm 28662 Vezi
28713 Flange joint DN 80, for polymer fittings 28713 Vezi
680535 Replacement pump Aquadive SPF1300 230 V 680535 Vezi
680536 Impeller SPF 1300 680536 Vezi
680537 Pump flange with seal and screws 680537 Vezi
680538 Cleaning cover with seal 680538 Vezi
680539 Float switch set with seal 680539 Vezi
680540 Seal set 3 x DN 100, 1 x DN 125 680540 Vezi
680541 Control unit Connect Mono, 230 V 680541 Vezi
680548 Non-return flap with bracket 680548 Vezi
680549 Seal for flange, d: 236 mm 680549 Vezi
  • CE marking (ce_kennzeichnung): yes
  • Type of wastewater (abwasserart_de): for wastewater with and without sewage
  • TÜV test mark (pruefzeichen): ID 1111241940
  • Installation situation (einbausituation): free-standing installation
  • Pump (pumpe): SPF 1300
  • (ausfuehrung):
  • Operating voltage (betriebsspannung): 230  V
